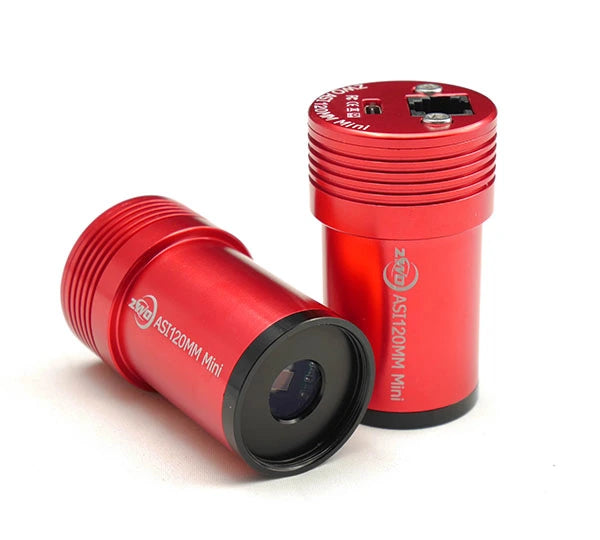

ASI120MINI

ASI120MM Mini camera integrates an AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). This camera has 1280 x 960 pixels with a pixel size of 3.78 μm x 3.78 μm.  It camera provides 12-bit ADC and its QE peak is 80%.

Astrophotography Performance

ASI120MM mini camera offers you very good performance for planetary imaging as well as for guiding. Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that set it apart from the competition.

High QE

USB2.0Port & ST4 Port

USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn't matter which way you connect it (unlike for example type-A or type-B)

#USB-C to USB-A cable is required.

ST4 Port: The camera can be connected directly to the auto-guider port of the mount.

Connecting Drawing

1. M28.5-CS adapter
2. CS-C adapter(optional)
3. 1.25″ extender
4. 1.25″ filter(optional)

Mechanical Drawing

What is in the box?

How to choose a good guide camera?

Many people might mention the size, ability to fit with different types of equipment (guide scopes, OAG etc.), stability and ease-of-use.

We agree. That is why our cameras in the "mini"-series all fulfill these, what we think are, basic characteristics of a good guide camera.

But what are truly the most important traits. Let's face it, when you set up your equipment for a night of imaging, you just want things to work and to see that smooth graph on your guiding software before you start your imaging sequence. In order to do that, there are some things to consider (apart from the points mentioned above):

• Sensitivity,
• Big FOV.

Works with OAG

The Mini-camera series are well suited for OAG use: They have a much bigger focus range than normal ASI cameras. No more worrying about your guide camera and main camera not being able to find focus at the same time.

Works with CS adapter and CS lens

Works with 1.25″ extender
