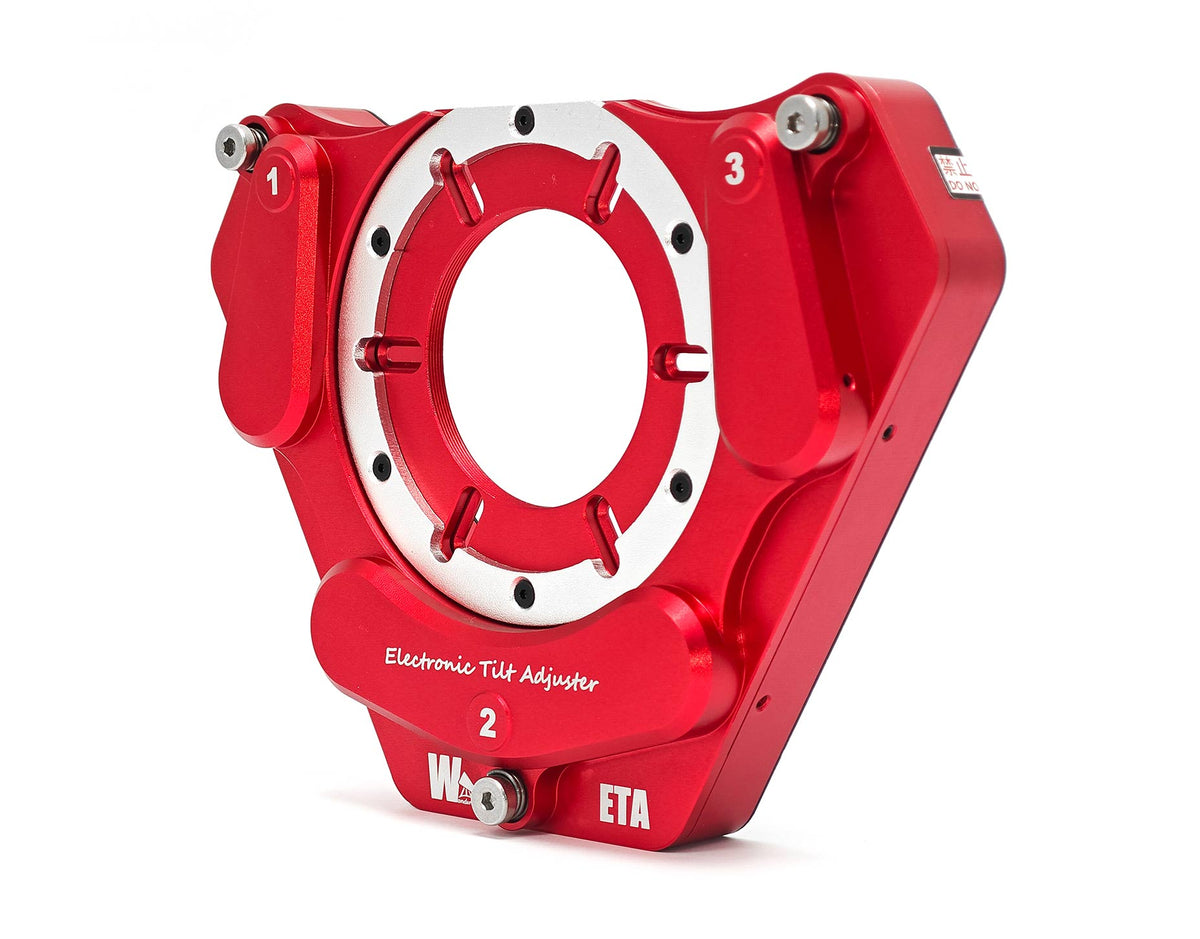

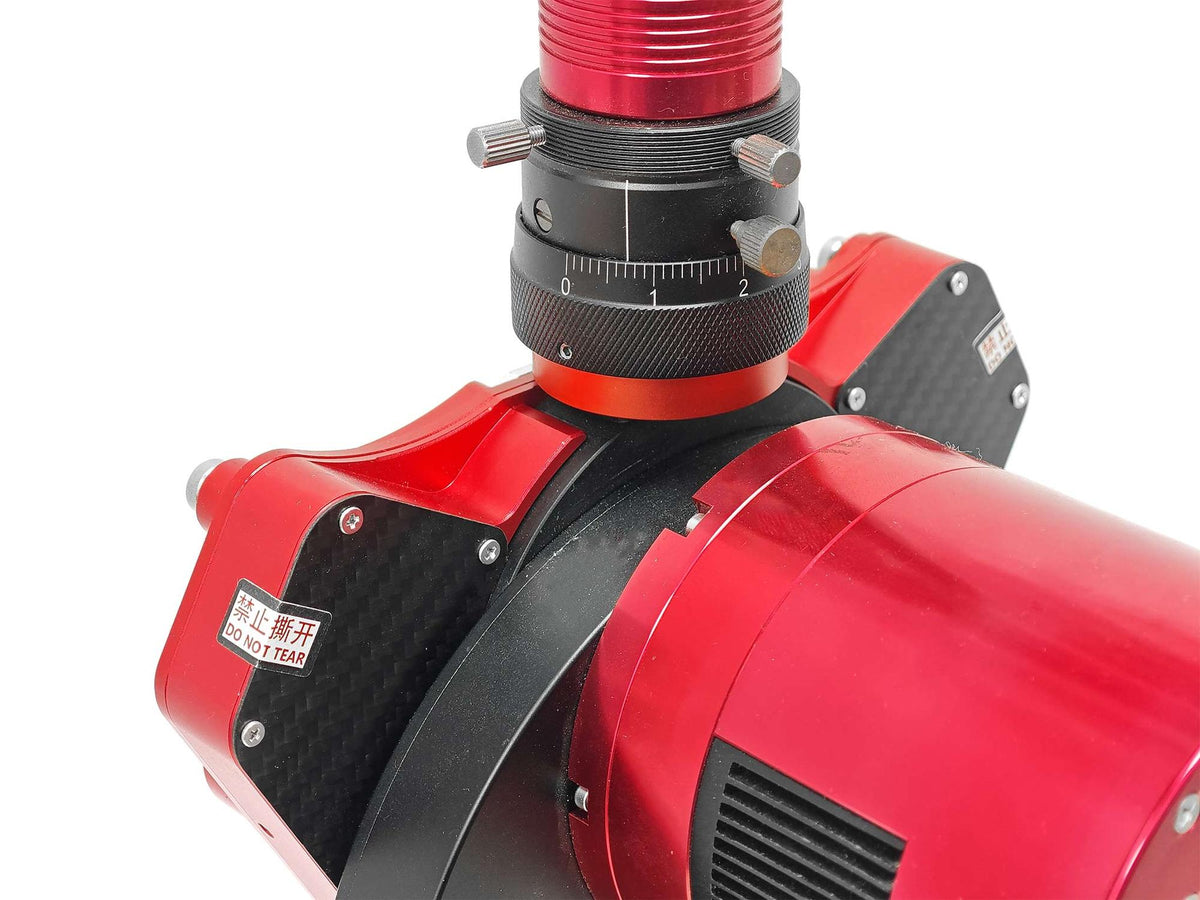

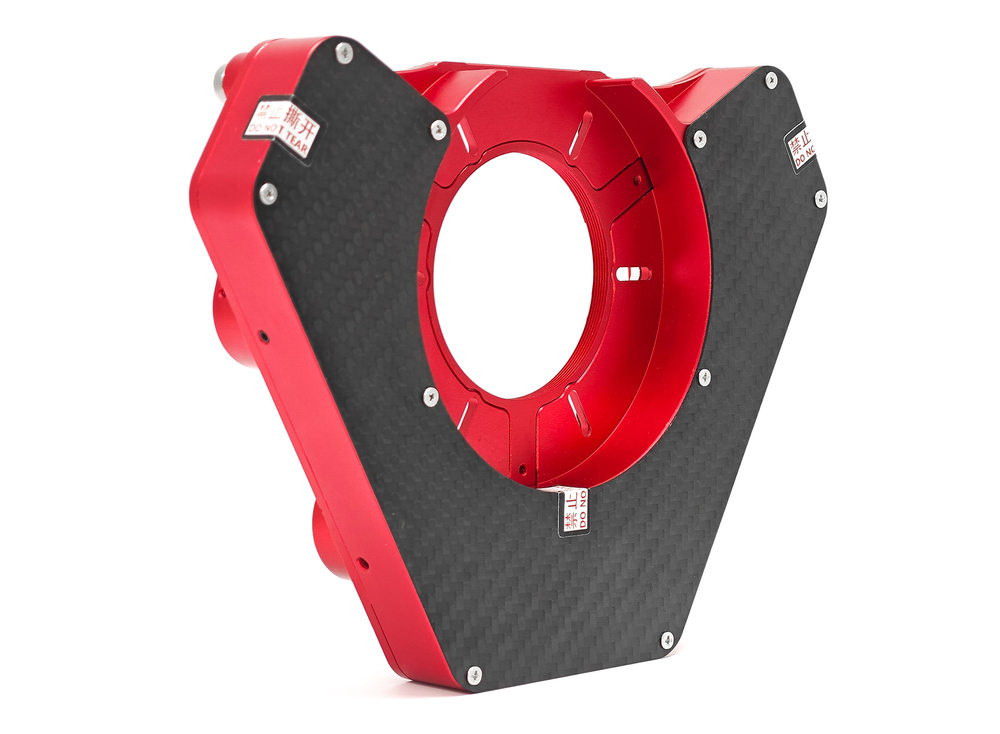

Wanderer Electronic Tilt Adjuster M54

Name: Wanderer Electronic Tilt Adjuster M54
Brand: Wanderer Astro
SKU: WETA54
Price: 849.00 USD
Availability: InStock

Our price

$849.00

Sale Sold out

Calculate shipping cost | shipping promo

Contact for shipping quote

Quantity

Product description

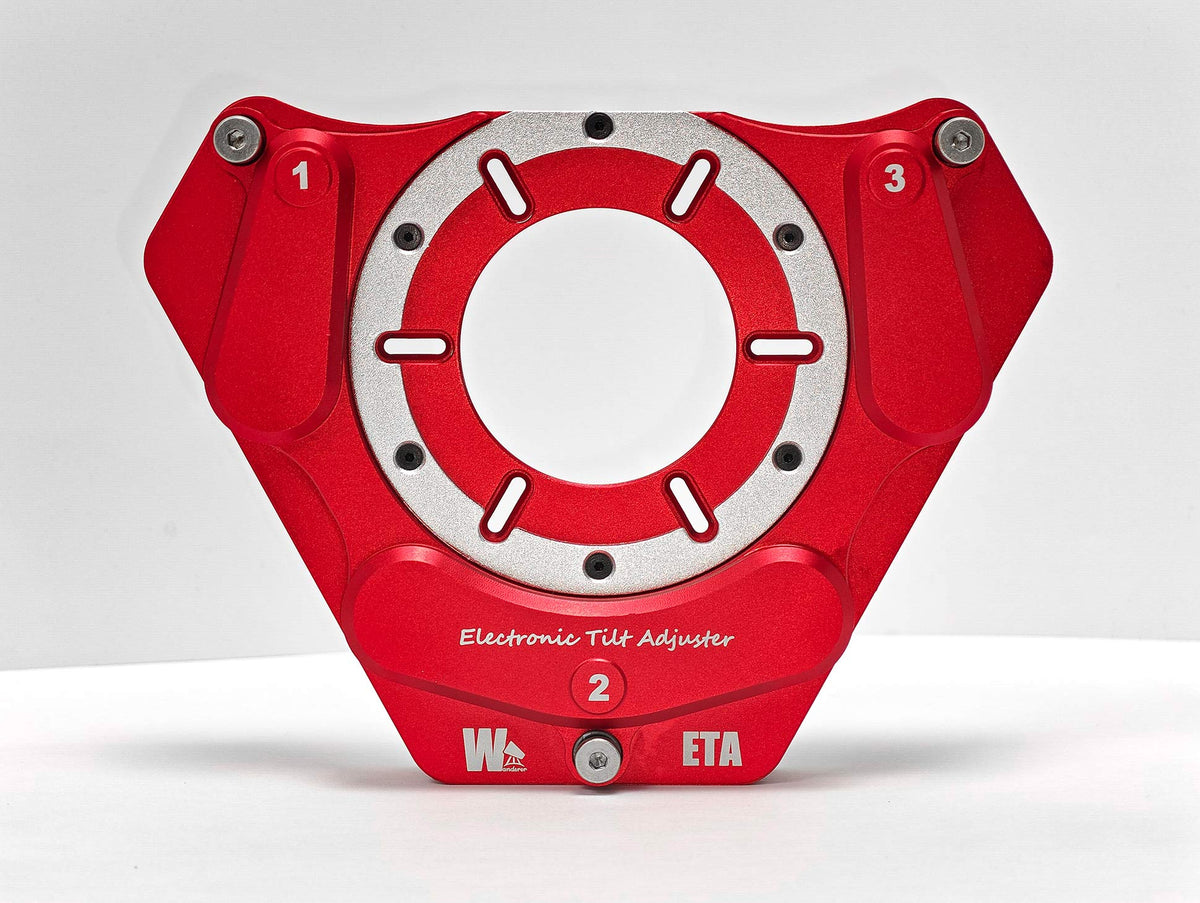

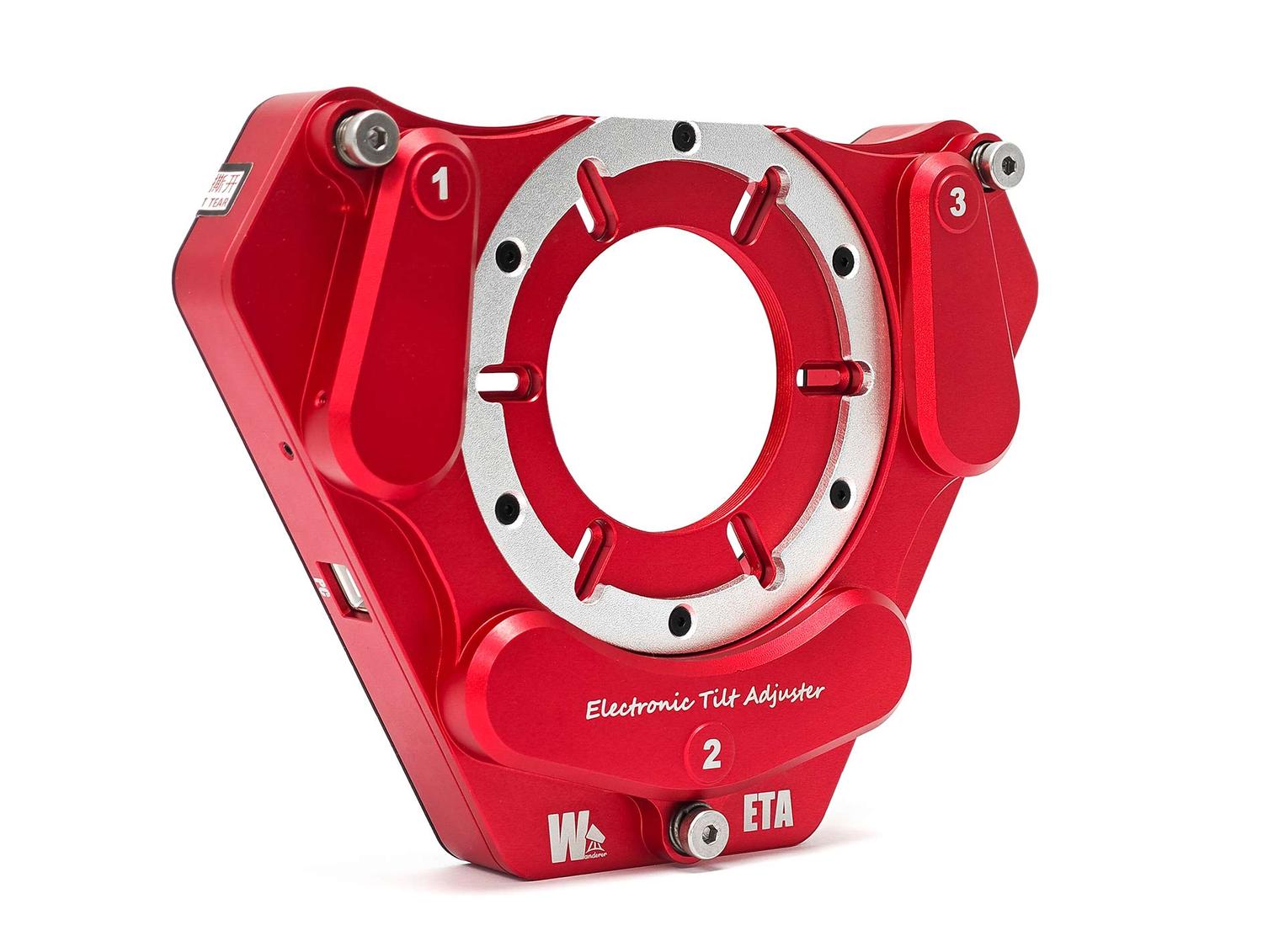

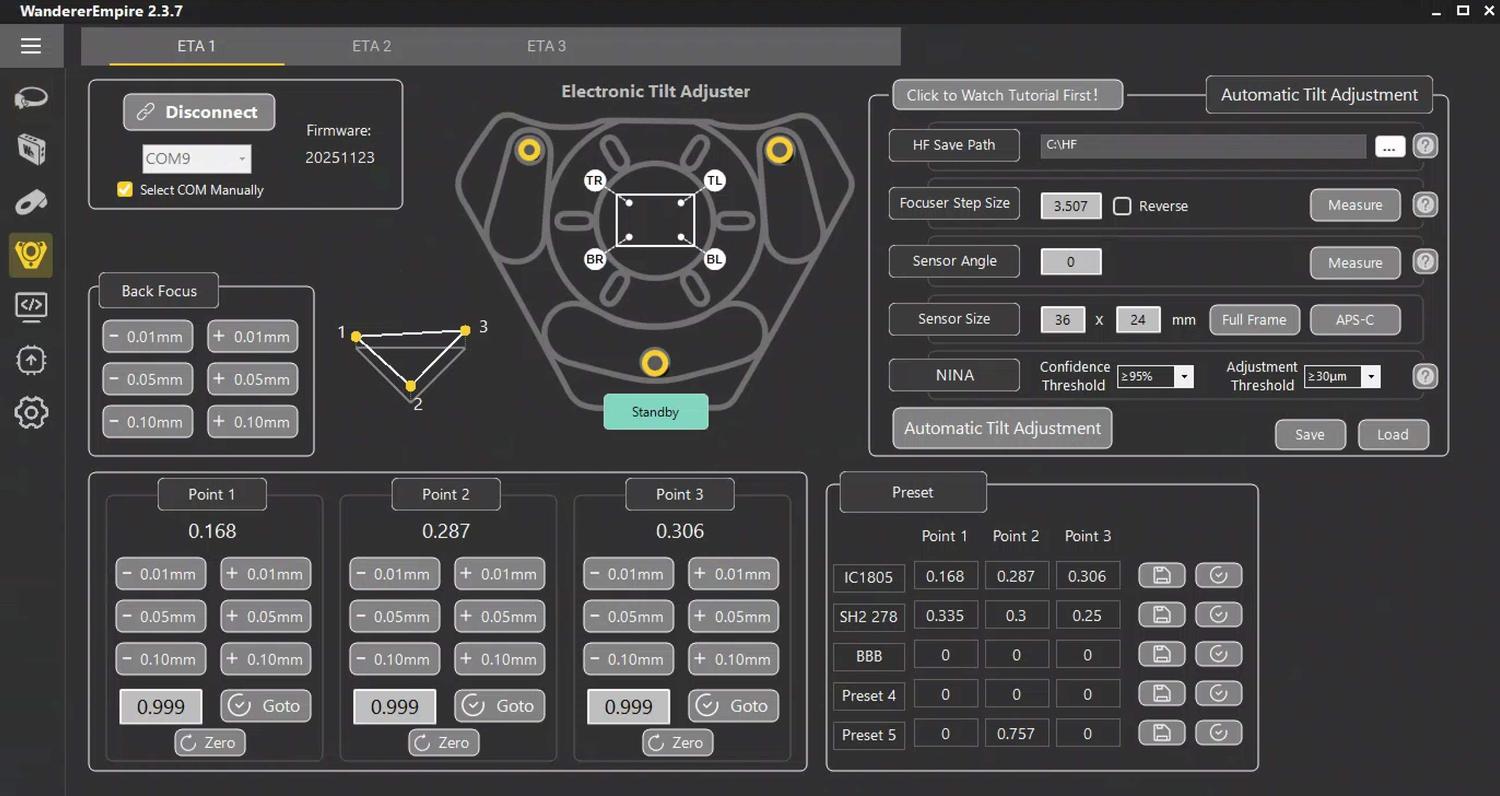

Wanderer Astro's NEW Electronic tilt-adjuster! compatible with Full-Frame cameras and only consuming 5mm of back focus, this ETA is an essential piece of kit for those with ultra-fast systems, especially with rotators and in remote observatories. Compatible directly with NINA and WandererEmpire, the ETA M54 is sure to fit right in with your current system!

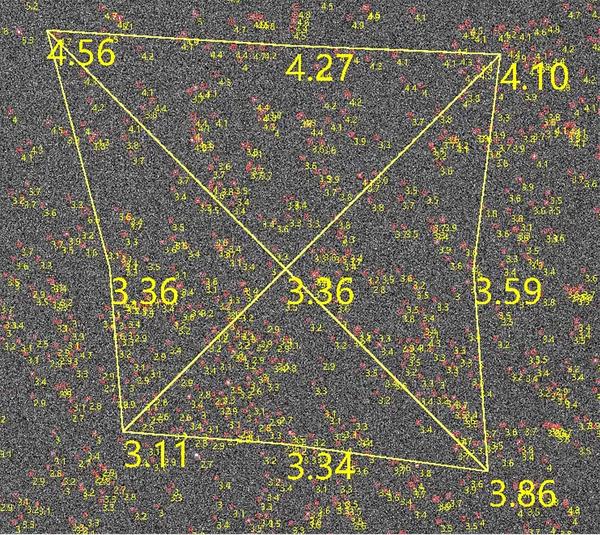

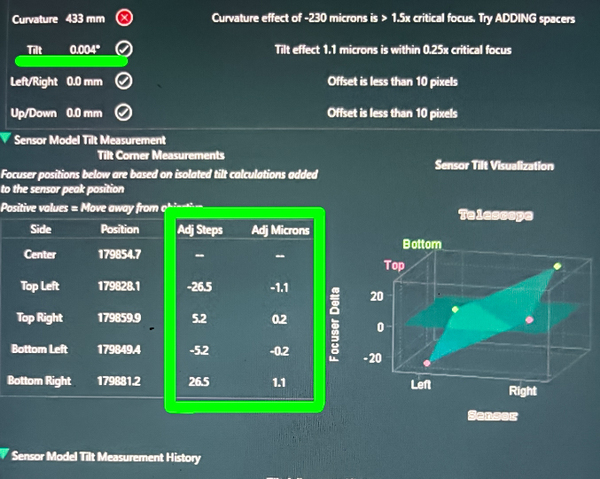

Before

Takahashi FSQ106+QHY600

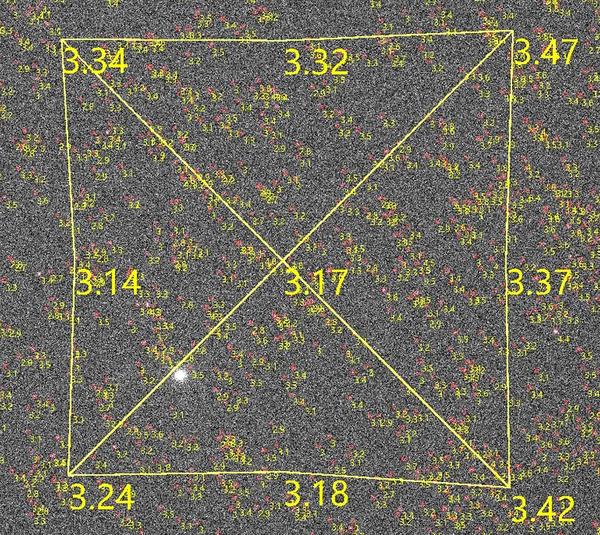

After

Takahashi FSQ106+QHY600

Before

SkyWatcher Esprit+ASI2600MM

After

SkyWatcher Esprit+ASI2600MM

Learn & Explore

Install WandererETA on your PlayerOne setup in 55mm back focus

2026-02-25

If you have a typical PlayerOne imaging train, you can easily integrate the Wanderer ETA while keeping the 56mm back focus

How to Connect the Wanderer ETA to a Filter Wheel — Without OAG

2025-07-27

Suitable for users who don't use an OAG.

How to Install the Wanderer ETA Directly to the Camera — Ideal for Color Camera Users

2025-07-27

For color camera users, it's recommended to directly screw the ETA to your camera.

Key Features

Still struggling to manually adjust the tilter in the darkness?

Frustrated with the difficulty and imprecision of the tilter?

Tired of not being able to remotely adjust the tilter?

The Wanderer ETA completely frees astrophotographers from the challenges of adjusting the tilt and back focus!

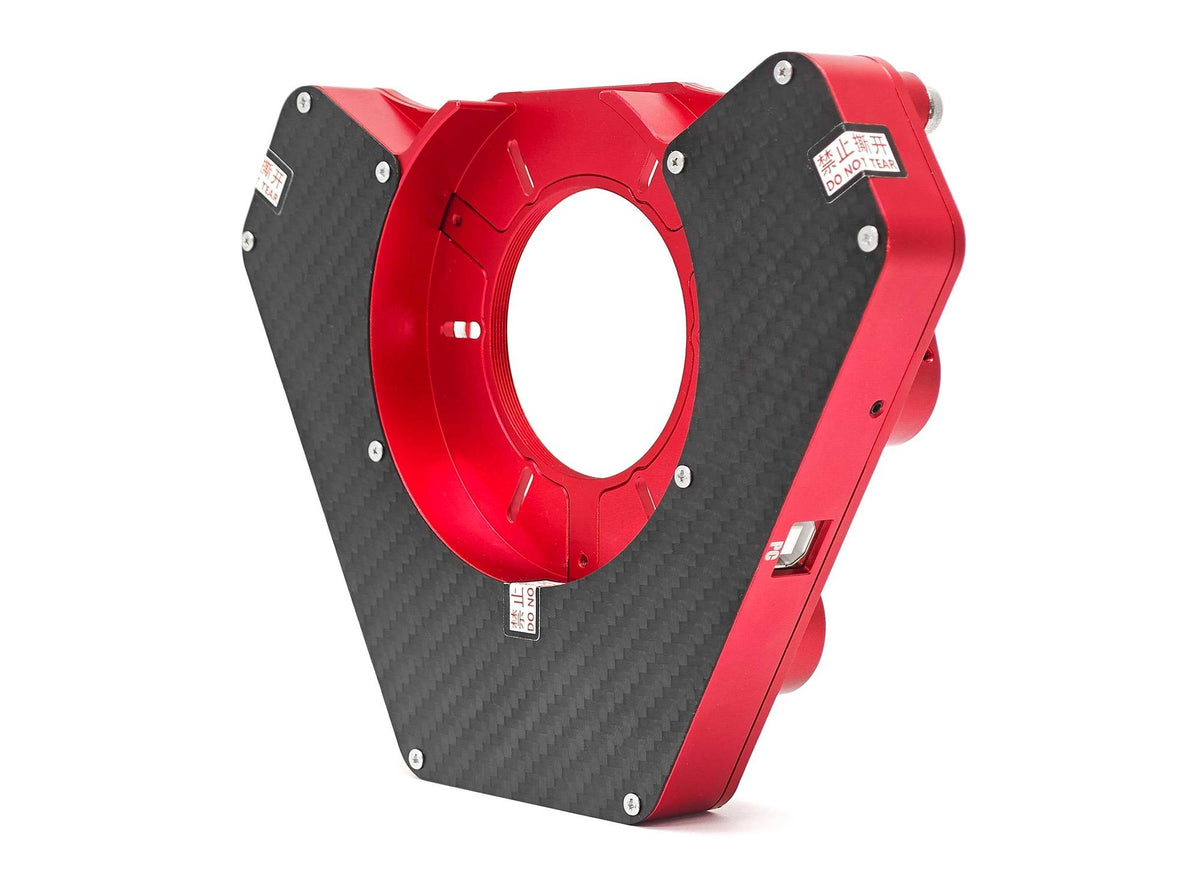

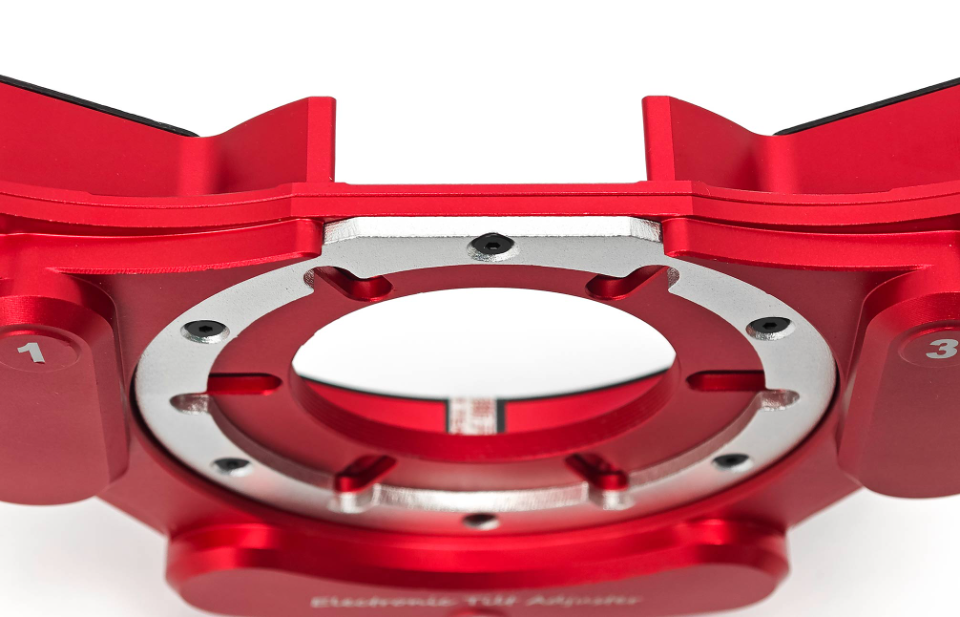

Unique Patented Structural Design

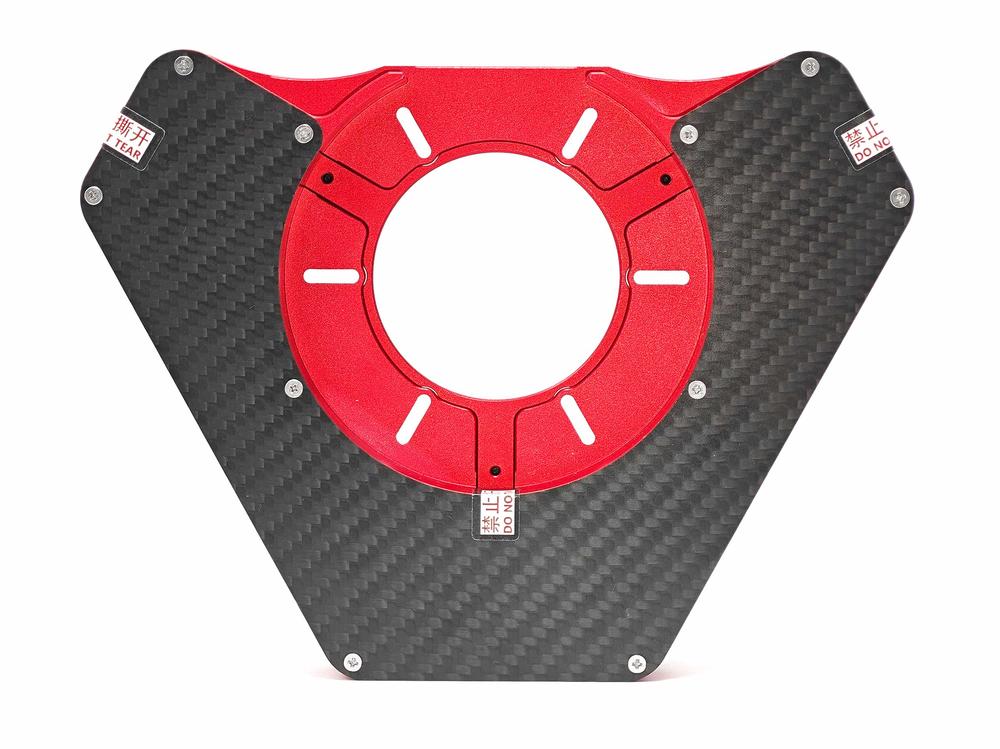

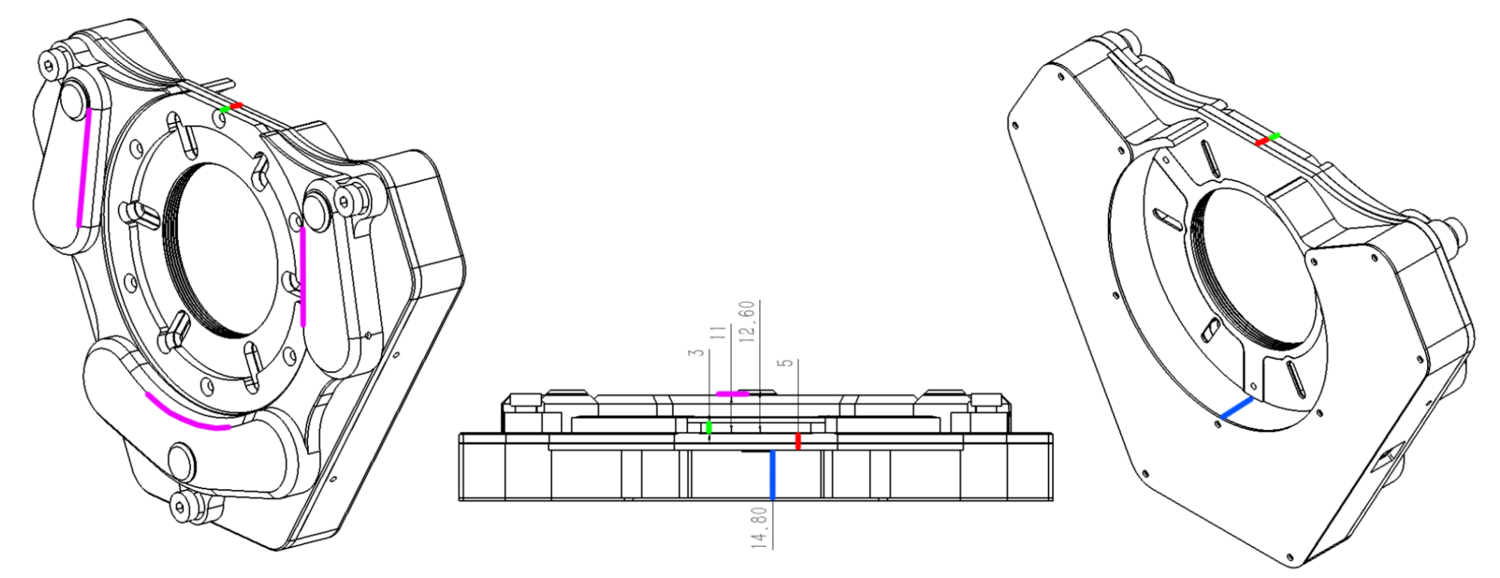

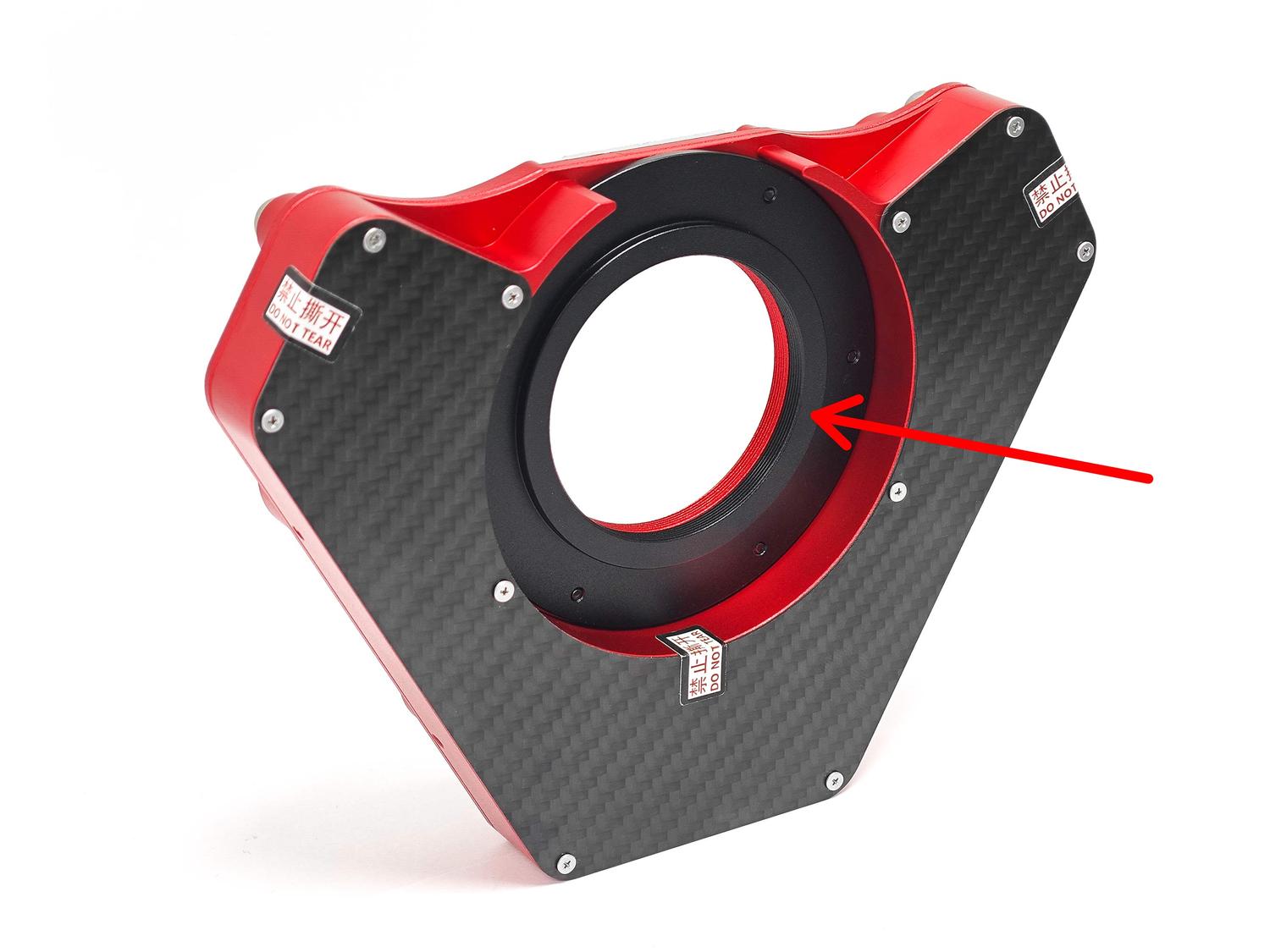

With an ultra-thin thickness, the Wanderer ETA occupies only 5mm of back focus or focuser travel when directly connected to camera-side devices(an OAG for example) with screws. It weighs just 470g. Additionally, it features a dual-layer nested structure that eliminates any light leakage.

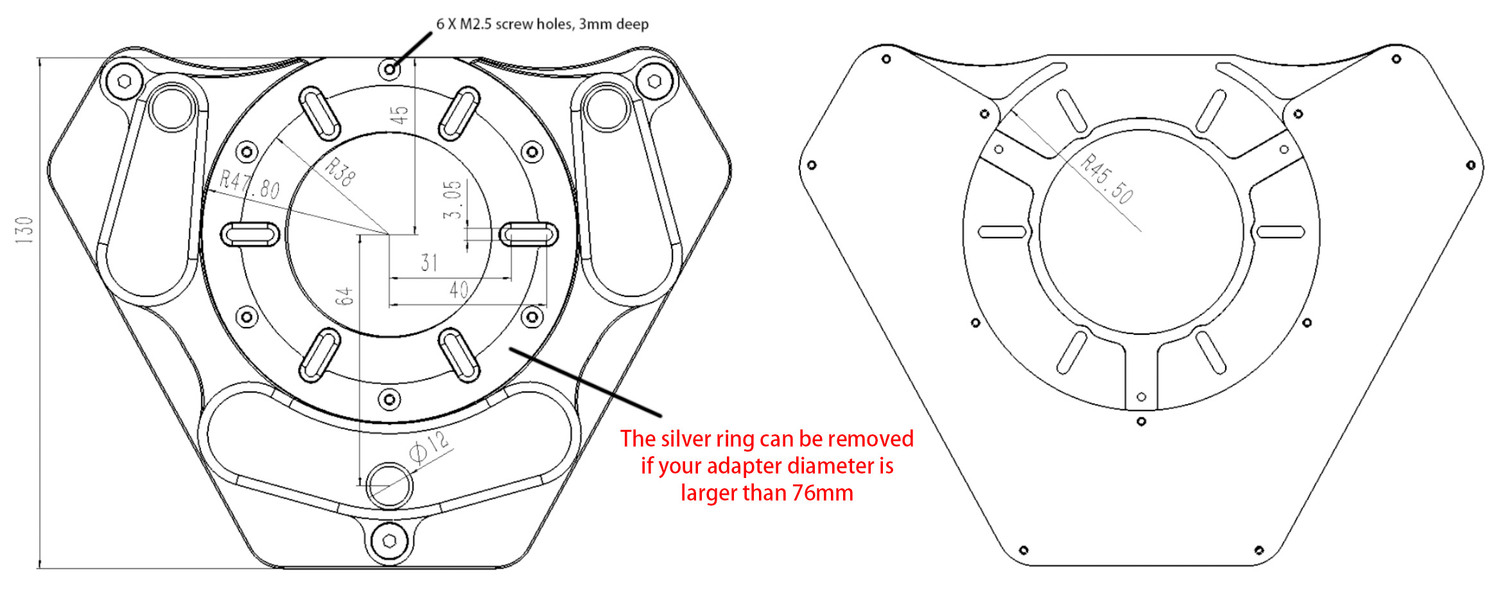

55mm Back Focus Possible!

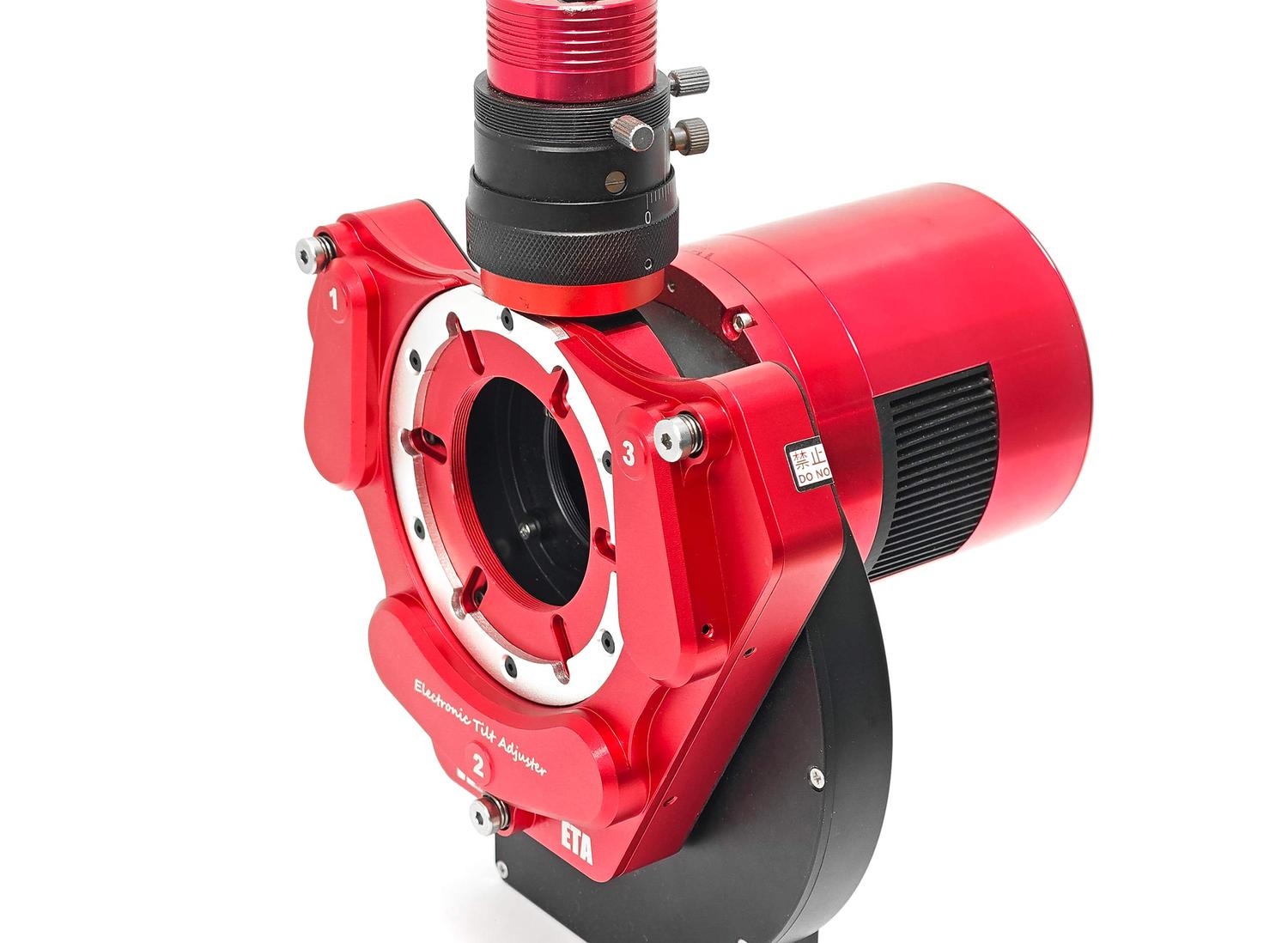

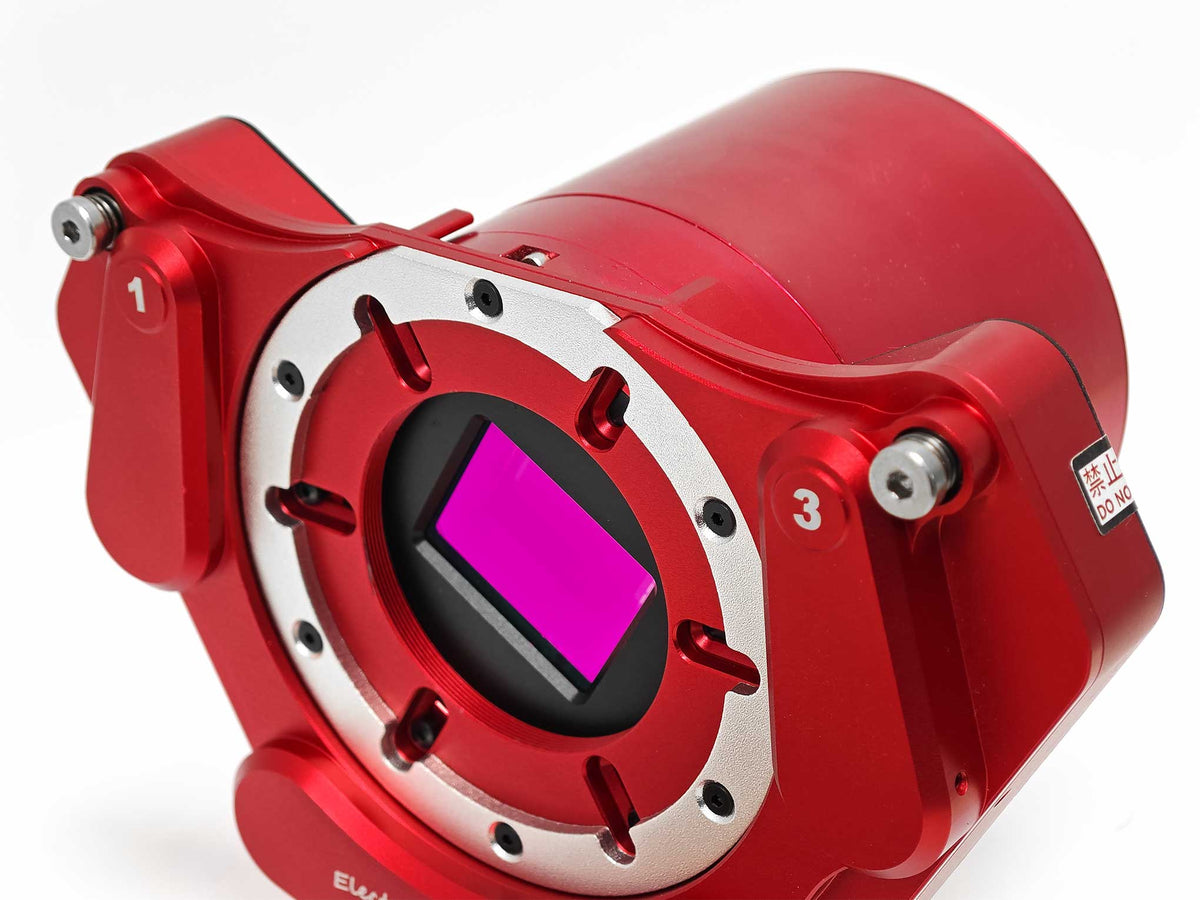

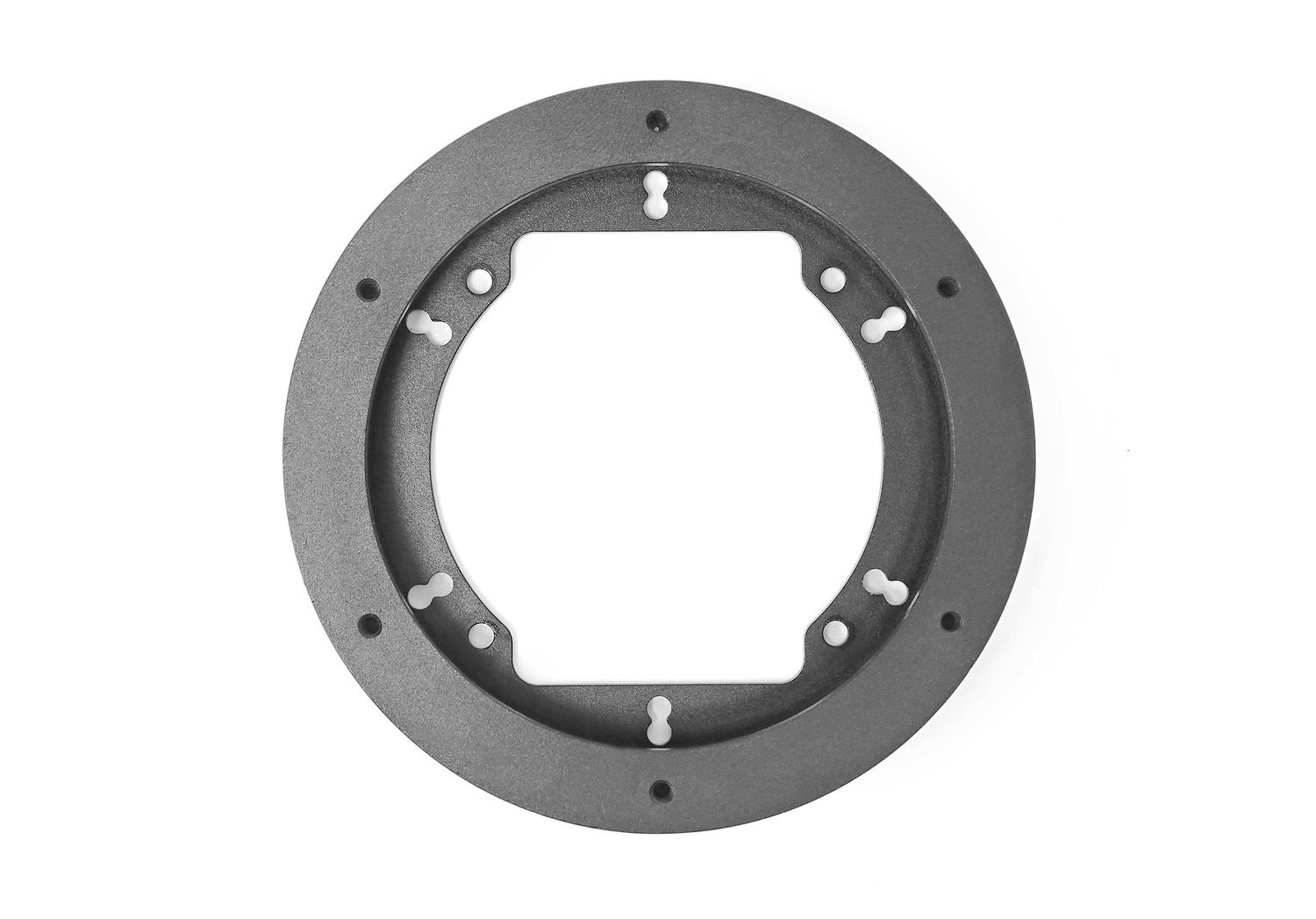

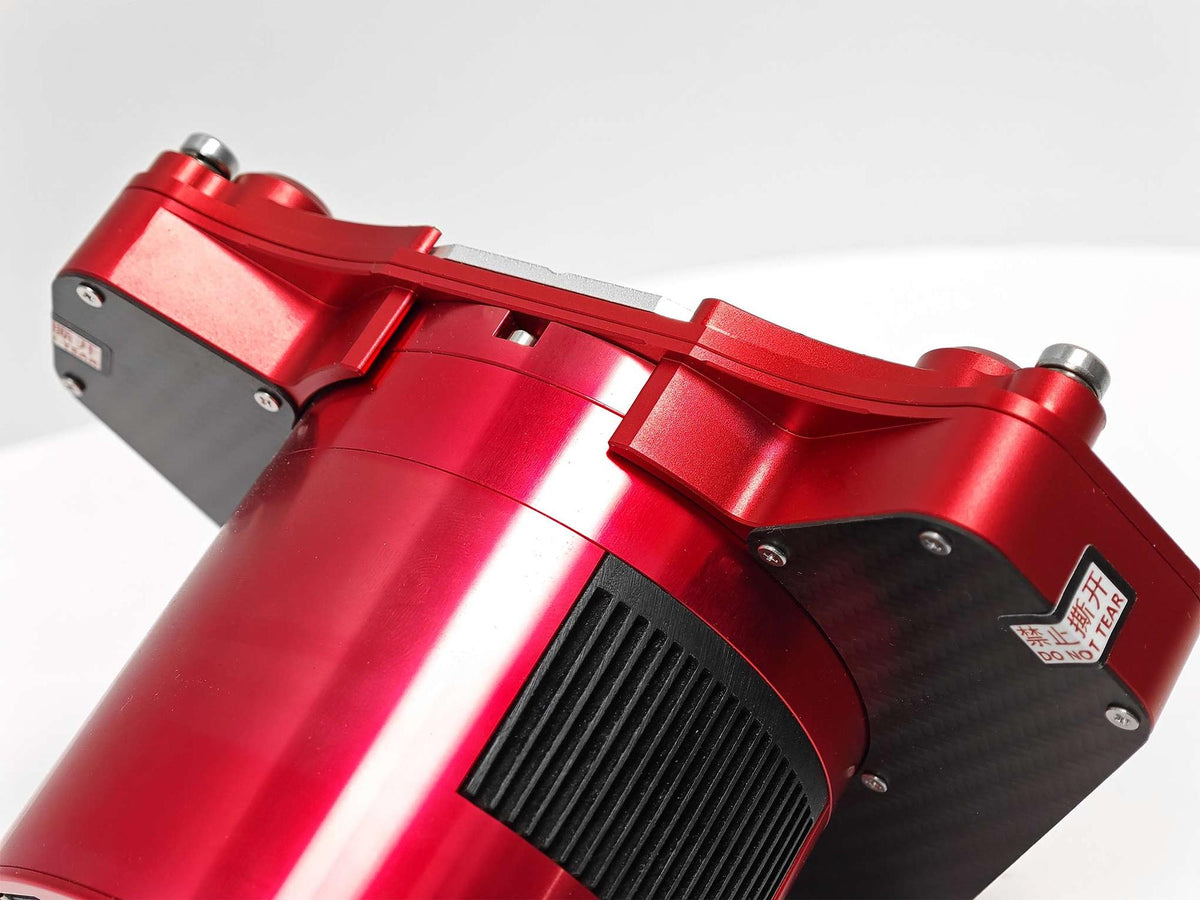

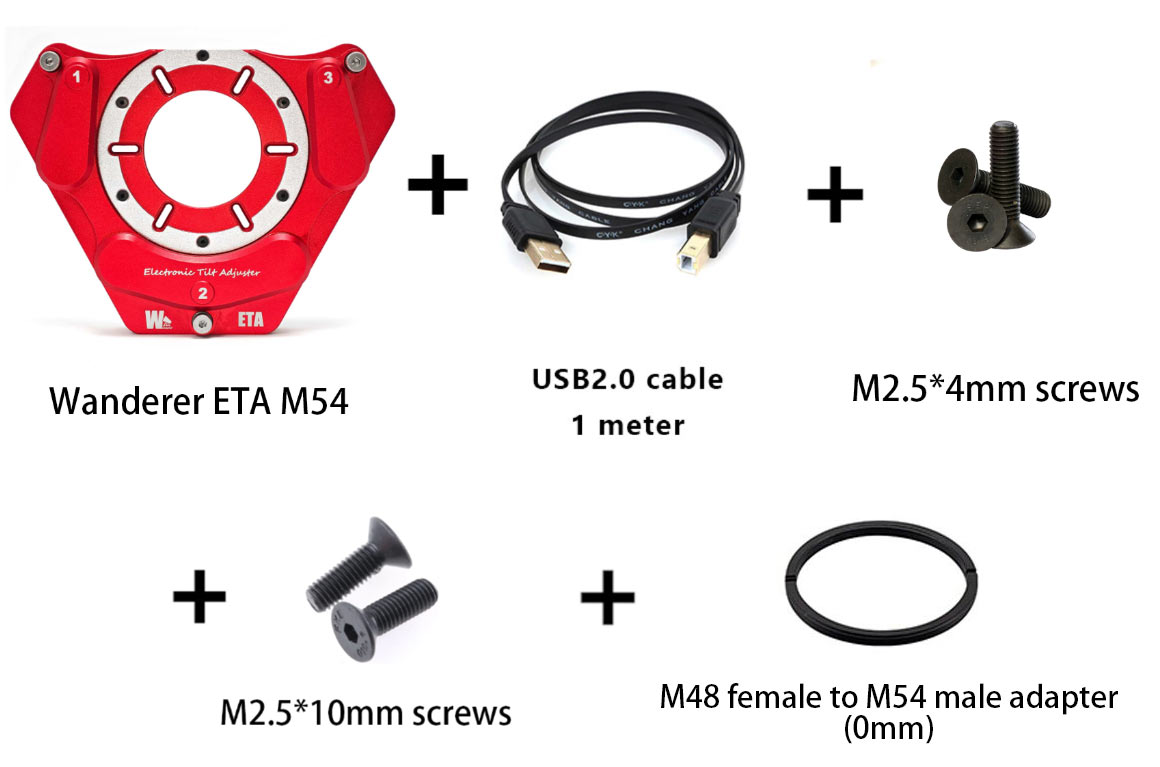

The Wanderer ETA can be directly mounted in front of an OAG or camera using screws and, in most cases, still maintain a 55mm back focus. For detailed installation instructions and device compatibility, please refer to the user manual. Of course, you can also connect ETA to your devices via threading with the adapter we provided (optional).

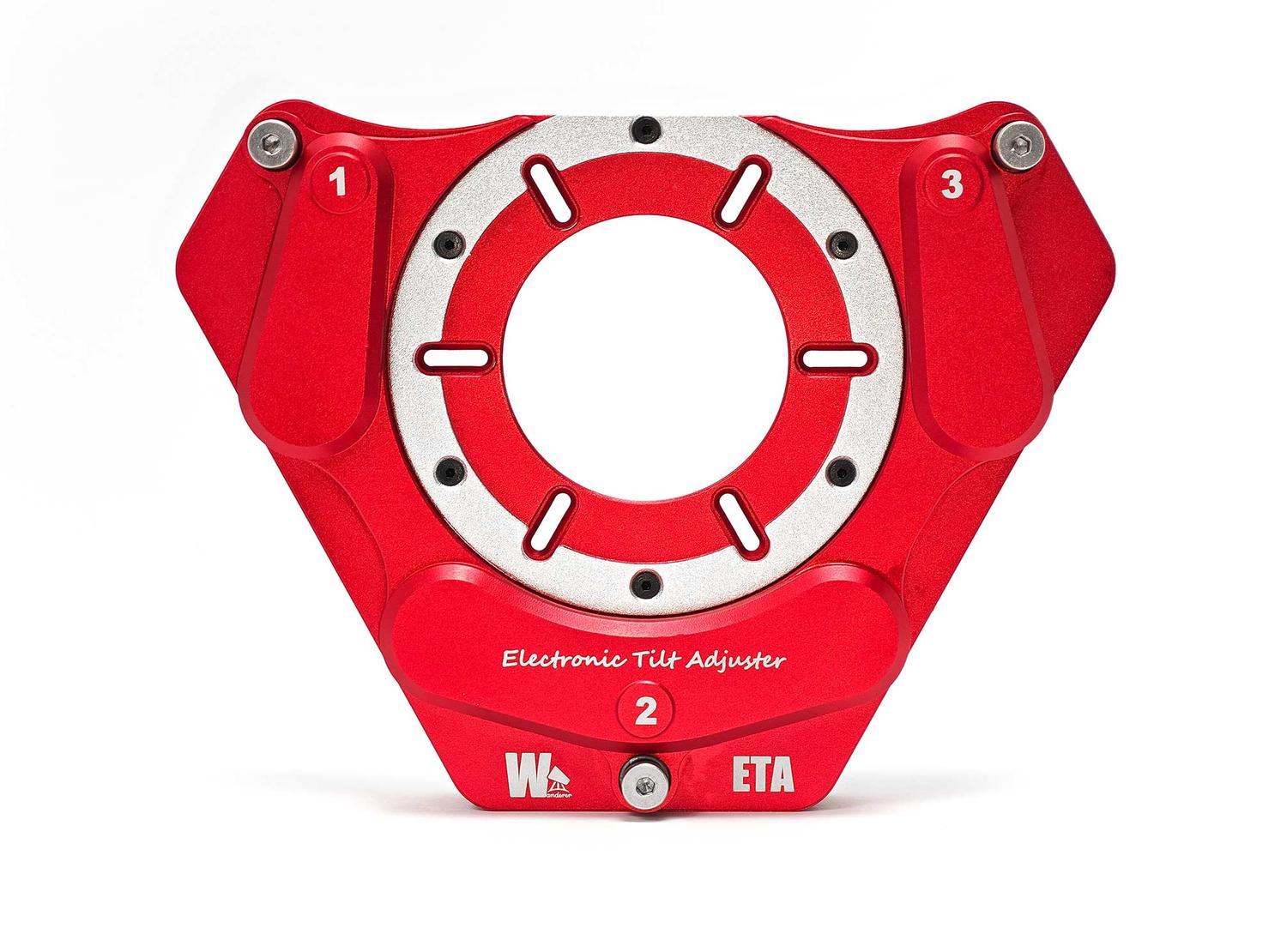

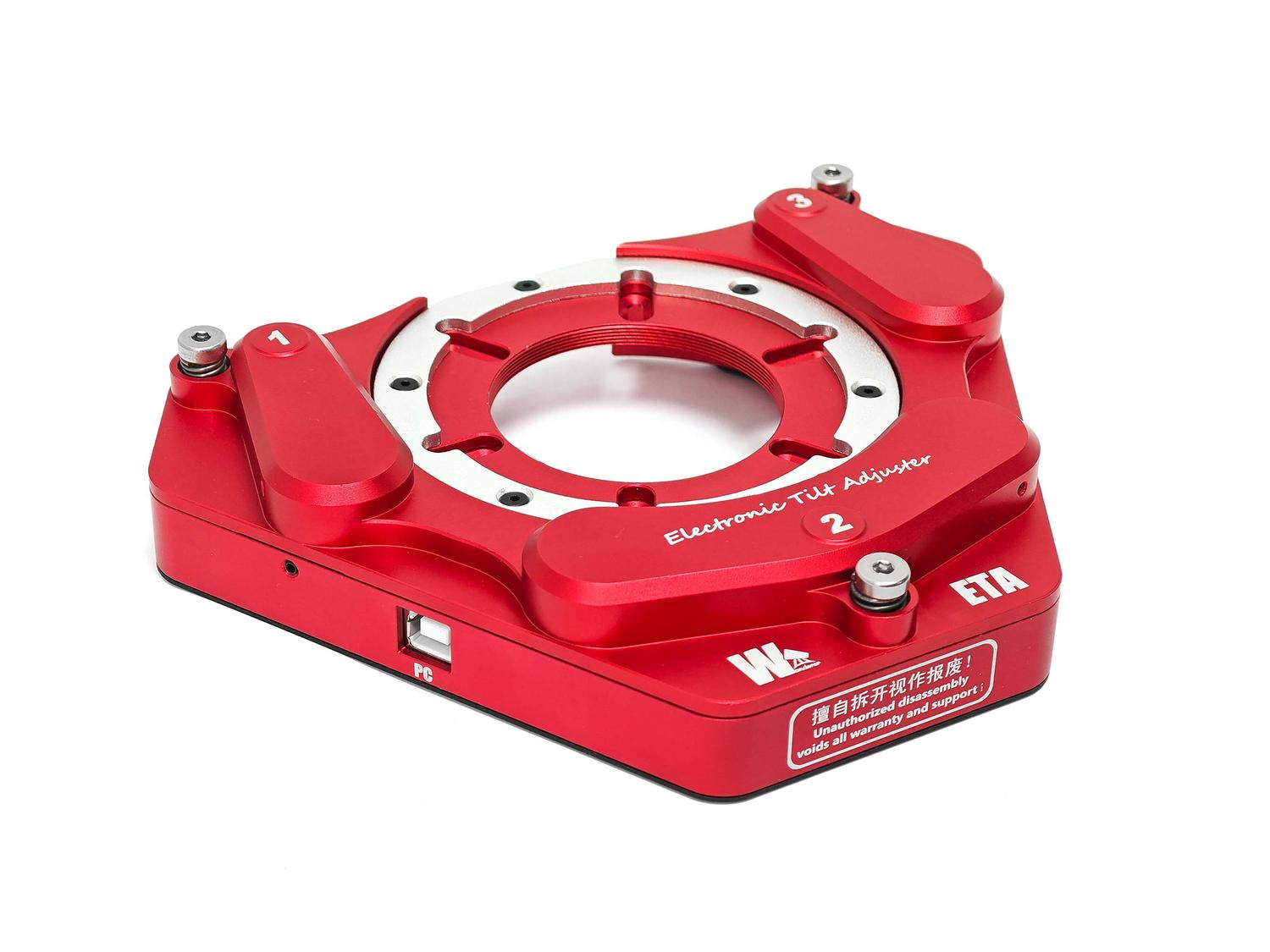

Three-Point Automated Tilt Adjustment

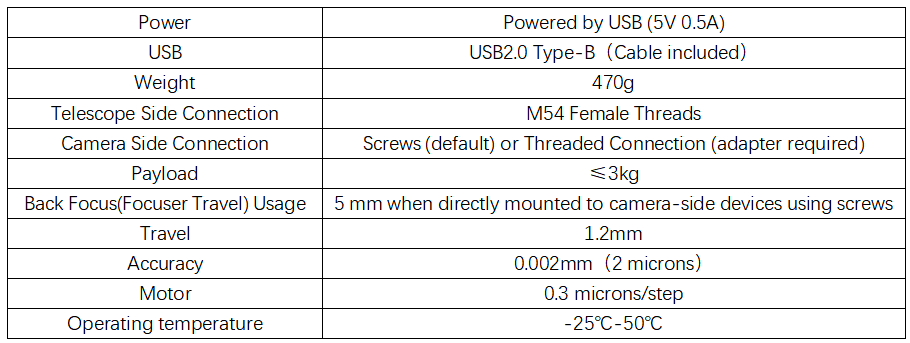

The Wanderer ETA features three independent adjustment motors and three high-precision encoders, offering an adjustment range of 1.2mm with a motor resolution of 0.3 micron per step and a positioning accuracy of up to 2 microns. Compared to traditional manual tilters, this achieves a precision several orders of magnitude higher, fully meeting the demanding tilt and back focus adjustment requirements of fast focal ratio systems and large-format cameras.

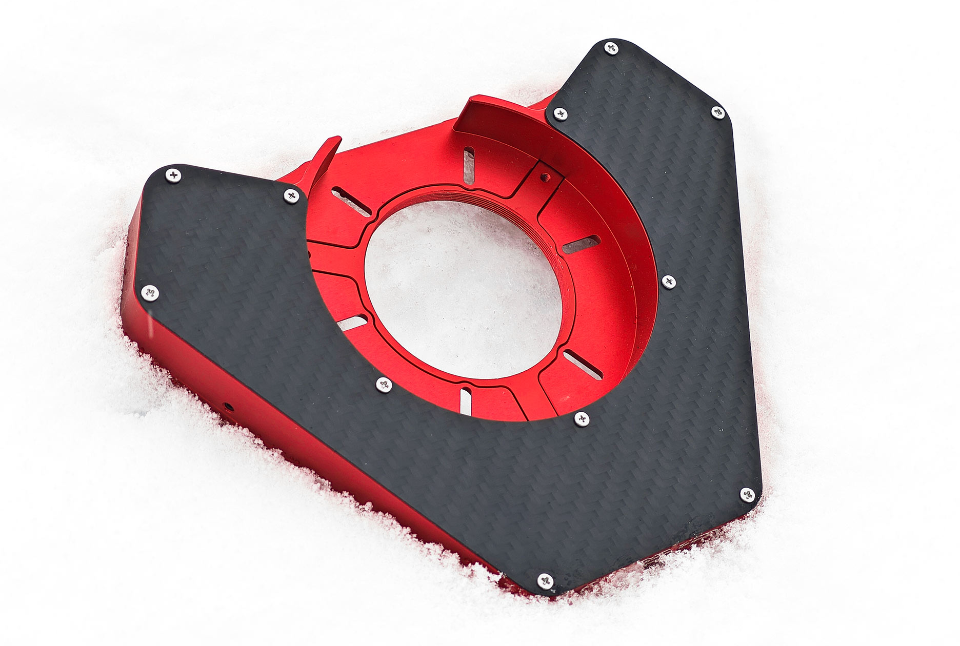

Low Temperature Resistant Design

Tested under extreme conditions, the Wanderer ETA remains fully operational even at -20°C (-4℉), making it resilient against harsh winter environments.

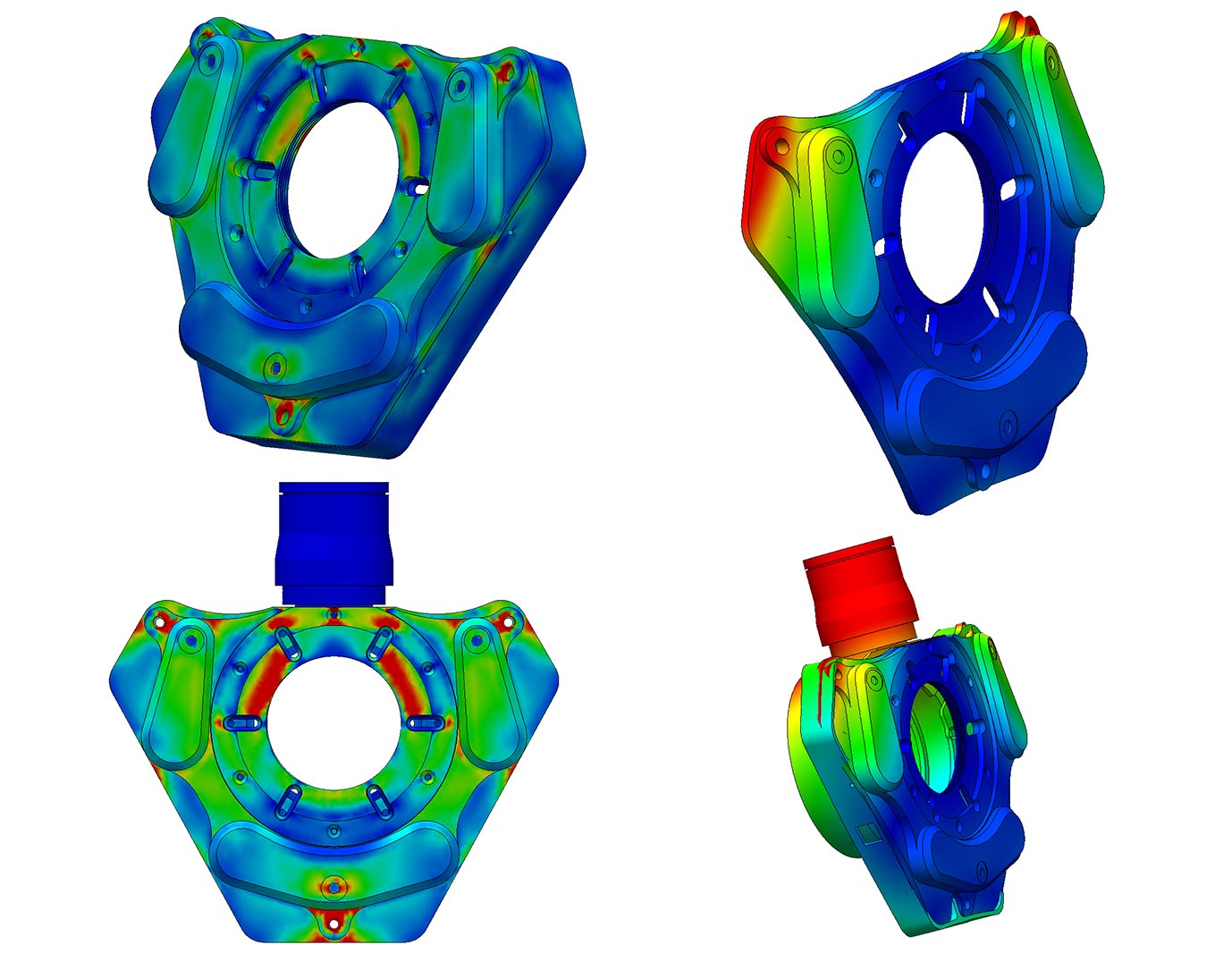

Professional Design

The Wanderer ETA is composed of nearly 1,000 curved surfaces and over 50 components. Every detail has undergone professional analysis, precise calculations, and countless optimizations to ensure the highest level of rigidity.

Unparalleled Aesthetic Design

WandererAstro's aesthetic design never disappoints. Every rounded corner and every carefully sculpted curve make the Wanderer ETA not just a precision instrument but also a beautifully crafted piece of art.
