UVEX Spectrograph

UVEX Spectrograph

Our price
Regular price $5,307.00
Regular price Sale price $5,307.00
Sale Sold out
Version
  • Calculate shipping cost | shipping promo
Contact for shipping quote

Product description

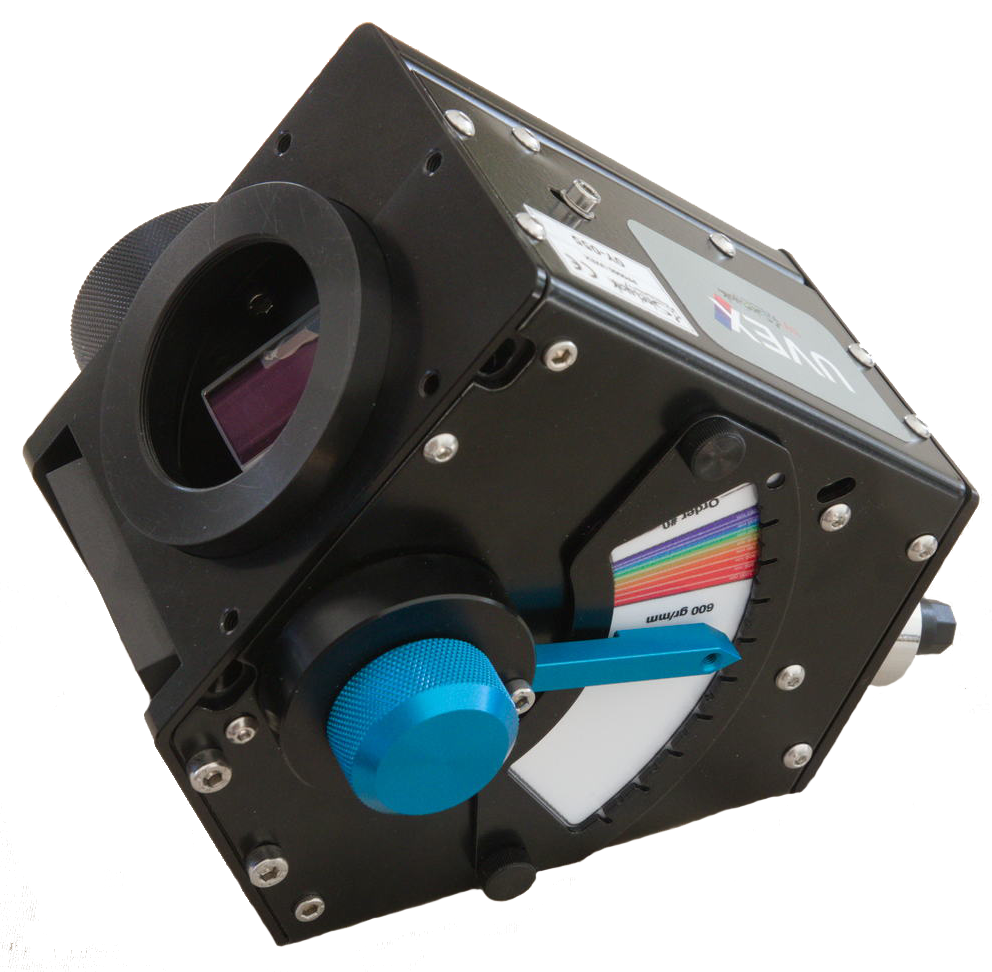

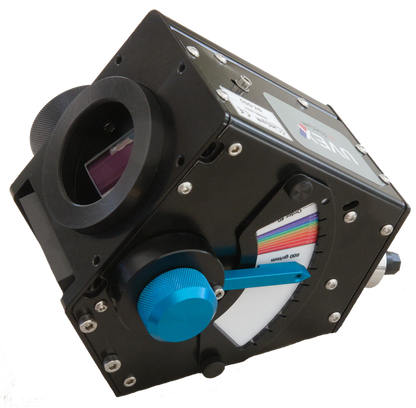

The UVEX is the most versatile instrument in our product range. Achromatic by design, it can explore far into the ultraviolet and infrared – at the very limits of what today’s cameras can achieve. The interchangeable grating allows different resolutions. Combined with its motorization module, it can be operated remotely.

Pricing subject to change based upon Euro to USD conversion at time of purchase

Specifications

  • Cross Czerny-Turner spectrograph optical design
  • Spectral range : 350 nm to 1µm
  • Spectral resolution with 600 l/mm grating R=1710 @ 650nm

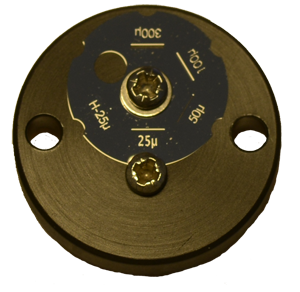

  • Multi-position slit: 25µm, 50µm, 100µm, 300µm, 25µm hole and 3mm hole
  • Optimum telescope F/D ratio: F/8 (you can go up to F/5 without vignetting, but at the cost of a slight degradation in quality).
  • Compatible with ZWO, QHY et ATIK camera with a backfocus <14mm
  • Dimensions : 145 x 140 mm Height = 120mm
  • Weight : 1,2 Kg (without camera)

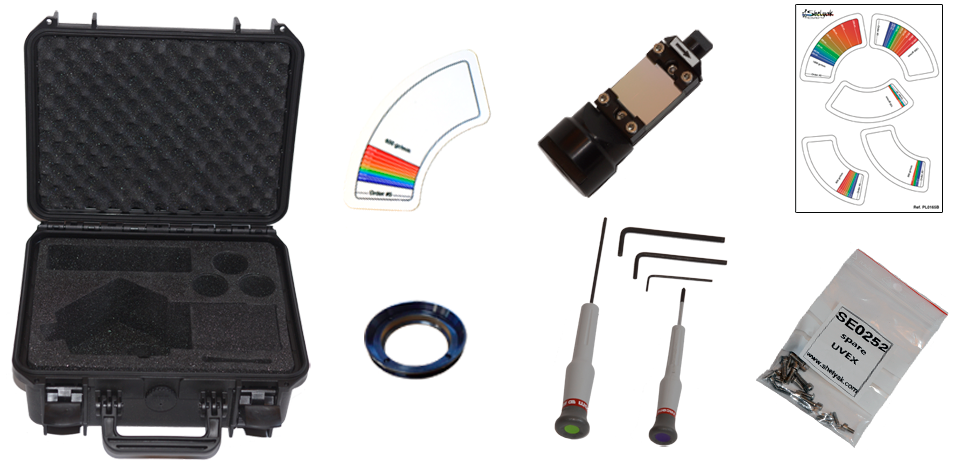

  • UVEX weight+ carrying case : 3,2 Kg
