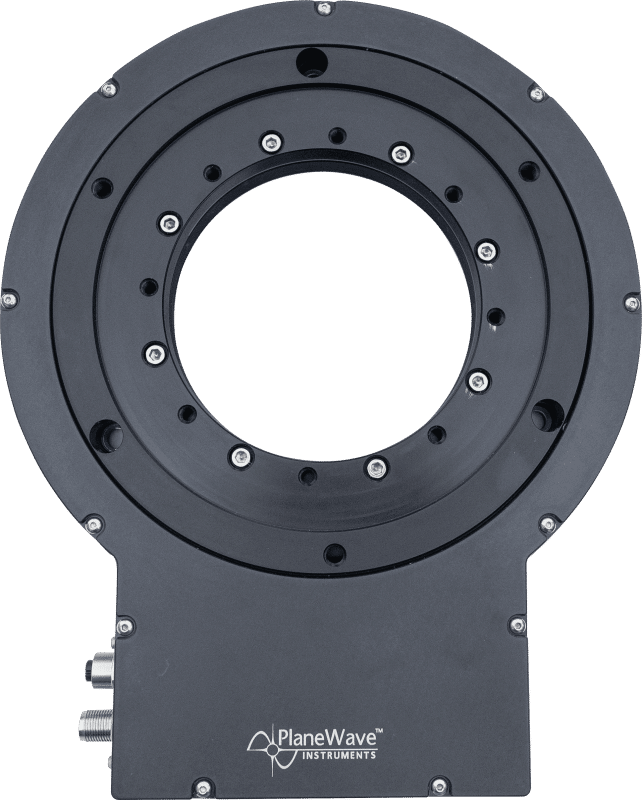

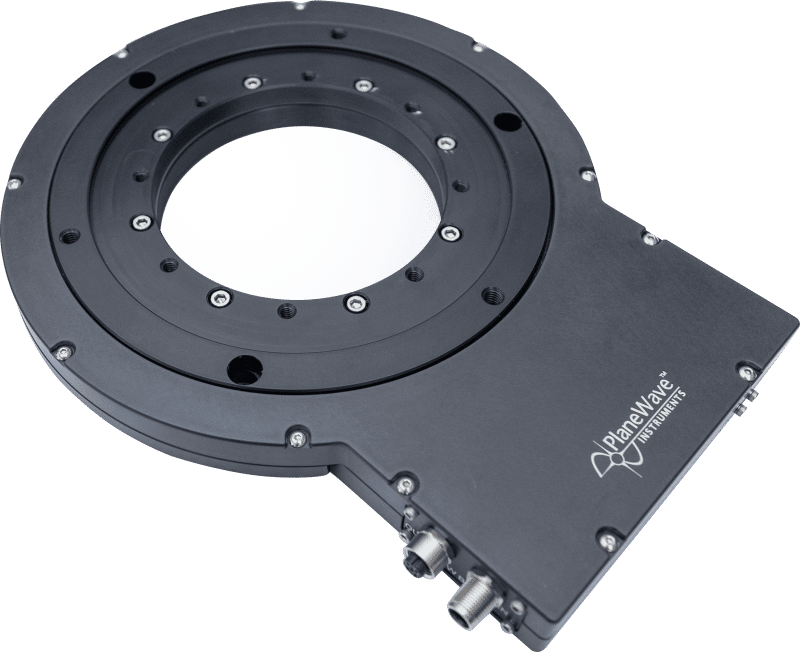

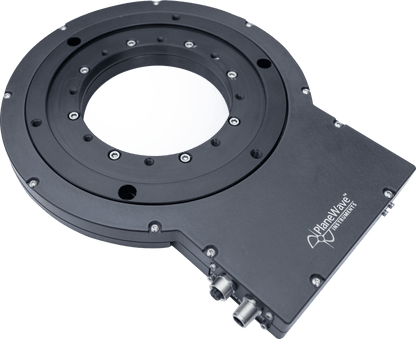

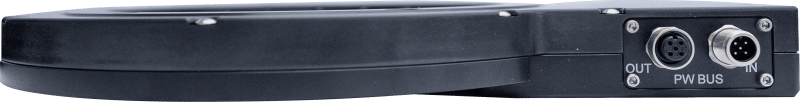

The Series-5 Rotator is a robust, high-precision instrument rotator designed for advanced imaging systems using either Alt/Az or equatorial mounts. With an ultra-fine encoder resolution and the ability to carry heavy imaging payloads, it delivers precision field rotation and seamless integration with PlaneWave’s Series-5 ecosystem.

Key Specifications

Rotation Range: 680° (between mechanical hardstops)
Back Focus Usage: 1.105″
Lift Capacity: 40 lbs (18 kg)
Encoder Resolution: 3,637,531 counts per rotation
Angular Resolution: 10,104.25 counts/degree (2.806 counts/arcsecond)
Software Control: PWI4 software (ASCOM compatible)
Power/Control: Requires Series-5 Controller
Compatibility: DeltaRho, RC700, and other supported PlaneWave OTAs

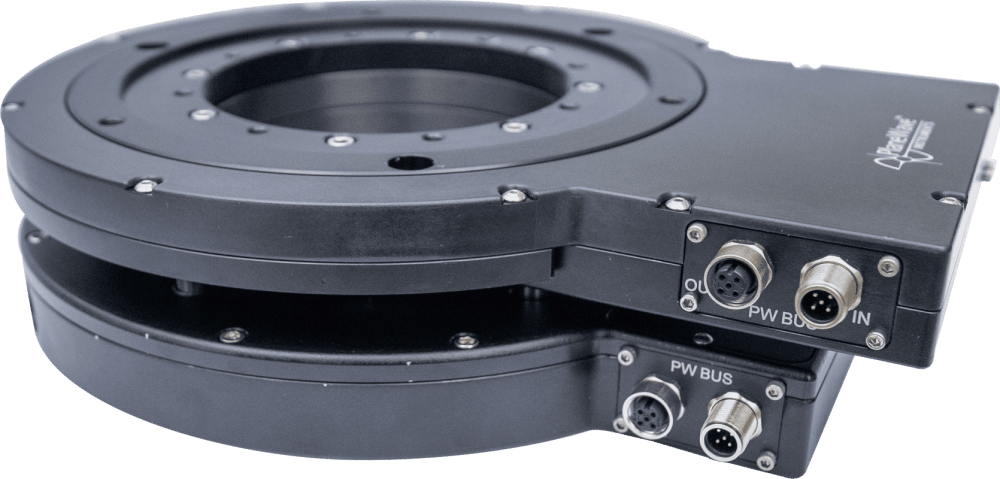

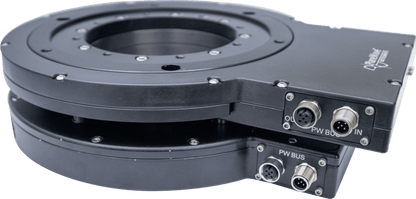

Stacking Capability: Can be combined with Series-5 Focuser (total occupied back focus: 2.78″)

Performance & Applications

- Enables precision instrument rotation for field de-rotation on Alt/Az mounts
- Seamlessly integrates with Series-5 Focuser for a full autofocus and field rotation solution
- Ultra-high resolution encoder ensures accurate tracking, framing, and image stability
- Built for heavy-duty imaging trains, supporting payloads up to 40 lbs
- Ideal for advanced astrophotography, research, and satellite tracking applications

NOTE: The Series-5 Rotator and Focuser are sold separately when stacked.
