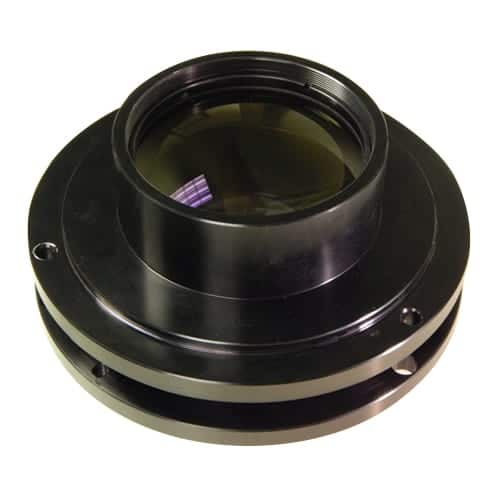

PlaneWave Reducer, 0.7X (for CDK700)

PlaneWave CDK700 Reducer – 0.7x Focal Reducer for Flat-Field Systems

This reducer lens is specifically engineered for use with flat-field telescopes like the CDK700, offering increased flexibility for wide-field imaging and faster exposure times. Designed to preserve image quality while reducing focal length, this accessory enhances the capabilities of your CDK700 system.

Key Specifications

Compatible Telescope: CDK700
Reduction Factor: 0.7x
Reduced Focal Length: 3150mm
Resulting Focal Ratio: f/4.5
Back Focus Compatibility: Requires low-profile version (#700167) when used with Series-5 Focuser and Rotator

Performance & Applications

- Reduces effective focal ratio by 30%, enabling faster imaging and wider field of view
- Ideal for survey-style imaging, large-sensor astrophotography, and deep-sky observation
- Designed to maintain a flat imaging plane with minimal aberrations across the field
- Compatible with advanced Series-5 imaging accessories using the low-profile version
- Improves imaging efficiency and reduces exposure time requirements for scientific or outreach use
