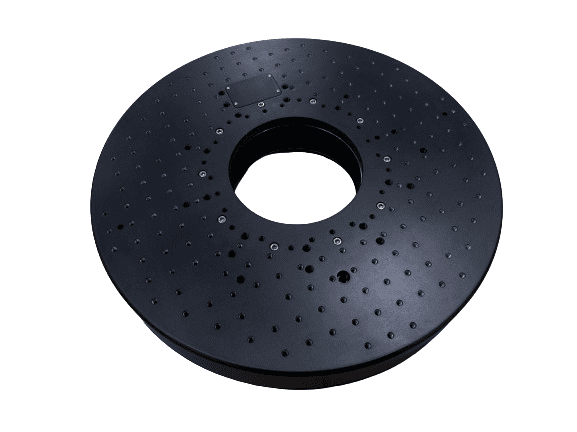

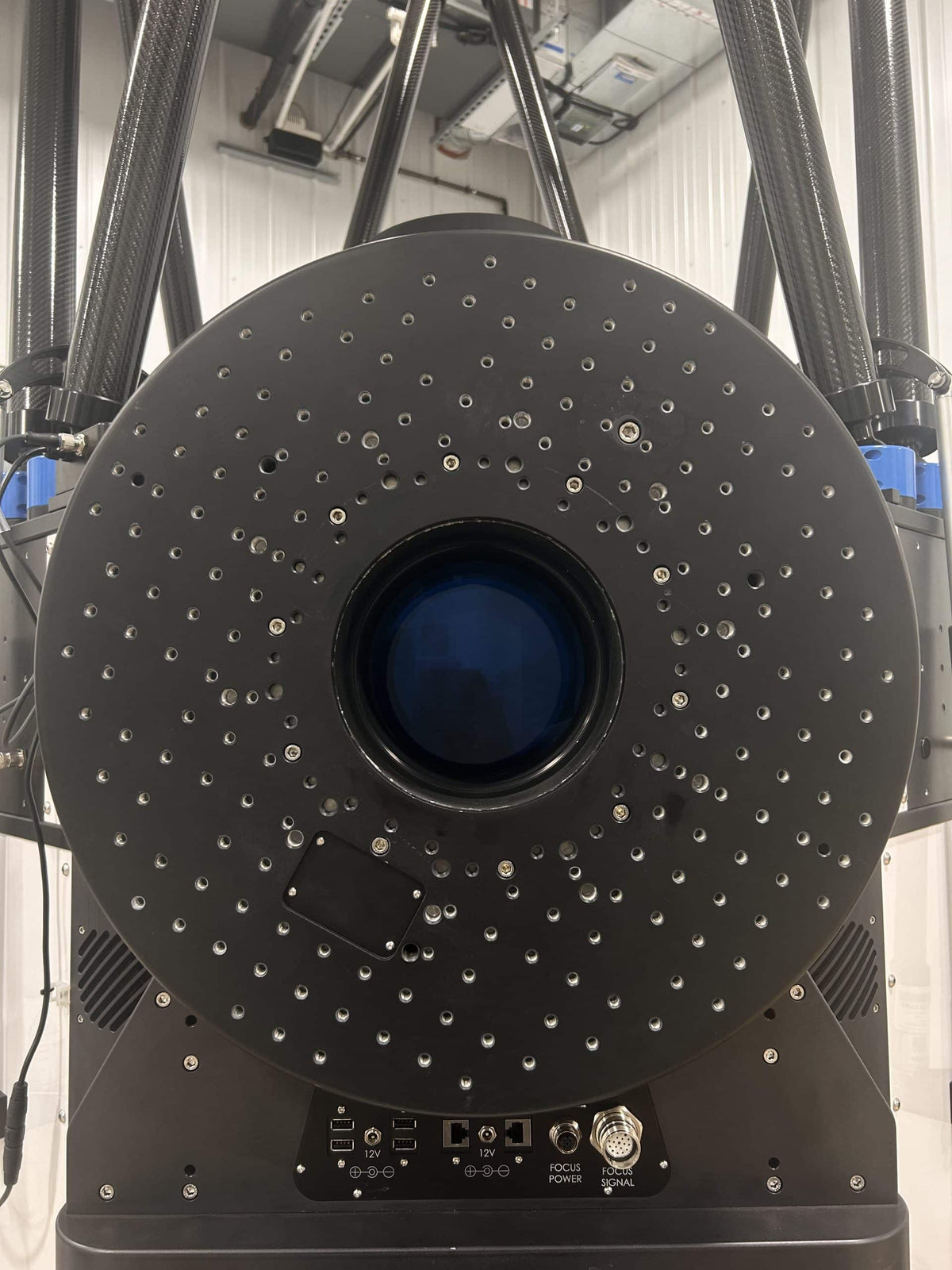

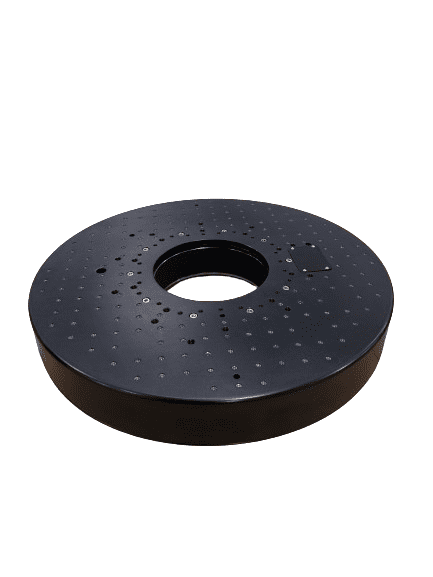

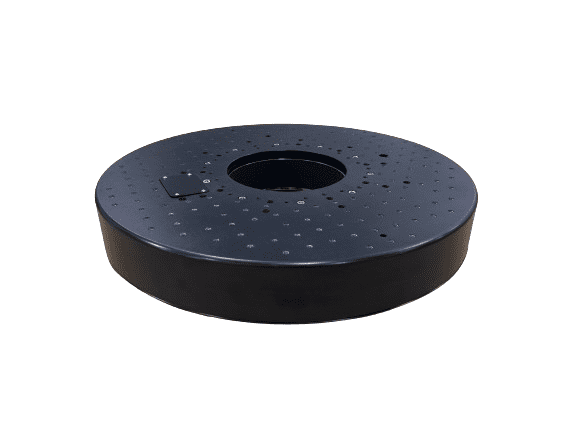

PlaneWave CDK1000 Instrument Rotator

PlaneWave CDK1000 Rotator – Precision Image Train Rotation for Research-Grade Telescopes

The CDK1000 Rotator from PlaneWave Instruments offers direct-drive rotational control for imaging train orientation, enabling precise field framing and advanced derotation capabilities for alt-azimuth telescope systems. Designed for maximum aperture and minimal backfocus intrusion, the CDK1000 Rotator is the ideal solution for professional-grade observatories requiring reliable, high-performance rotation.

Key Specifications

Rotation Mechanism: Direct drive motors
Backfocus Usage: 2.75″
Clear Aperture: 6.50″ (165 mm)
Control Interface: PWI4 software

Performance & Applications

- Provides smooth, fast, and accurate field rotation for alt/azimuth telescope systems
- Enables precise image framing or field derotation during long exposures
- Minimizes optical train intrusion while maximizing light path throughput
- Pairs seamlessly with the CDK1000 Focuser and PlaneWave 1-meter-class instruments
