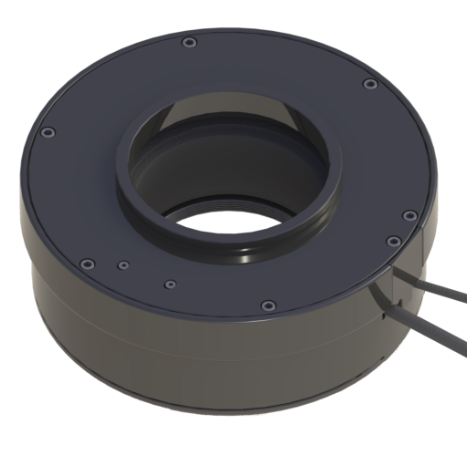

Paramount Direct-Drive Instrument Rotator

Paramount Direct-Drive Instrument Rotator

Our price
Regular price $9,230.00
Regular price Sale price $9,230.00
Sale Sold out
  • Calculate shipping cost | shipping promo
Contact for shipping quote

Product description

An instrument rotator is essential for eliminating field rotation on Paramount Apollo altazimuth mounts, and can make astrophotography tasks, such as field orientation on Paramount Taurusequatorial fork mounts simple. The same benefits extend to the Paramount Duo which can operate in altazimuth or equatorial mode.

The optional Software Bisque Direct-Drive Instrument Rotator is compatible with the Paramount Apollo and Paramount Taurus equatorial fork direct-drive mounts.

Description Specification
Clear aperture 89 mm (3.5 in.)
Physical size 200 mm (8 in.) OD, 70 mm (2.75 in.) thick
Weight 4.5 kg (10.2 lbs.)
Torque 9 Nm (7 ft-lbs.)
Telescope adapter Optec-style 4300 dovetail
Camera adapter 89 mm (3.5 in.) 24 TPI
Back focus 70 mm (2.75 in.)
Resolution 26-bit absolute encoder
Power Three-axis industrial direct drive controller
Construction Machined 6061 aluminum housing
Full travel 540 degrees
Control system Commanded by a three-axis industrial direct drive motor controller. Powered by TheSky software or custom software.
