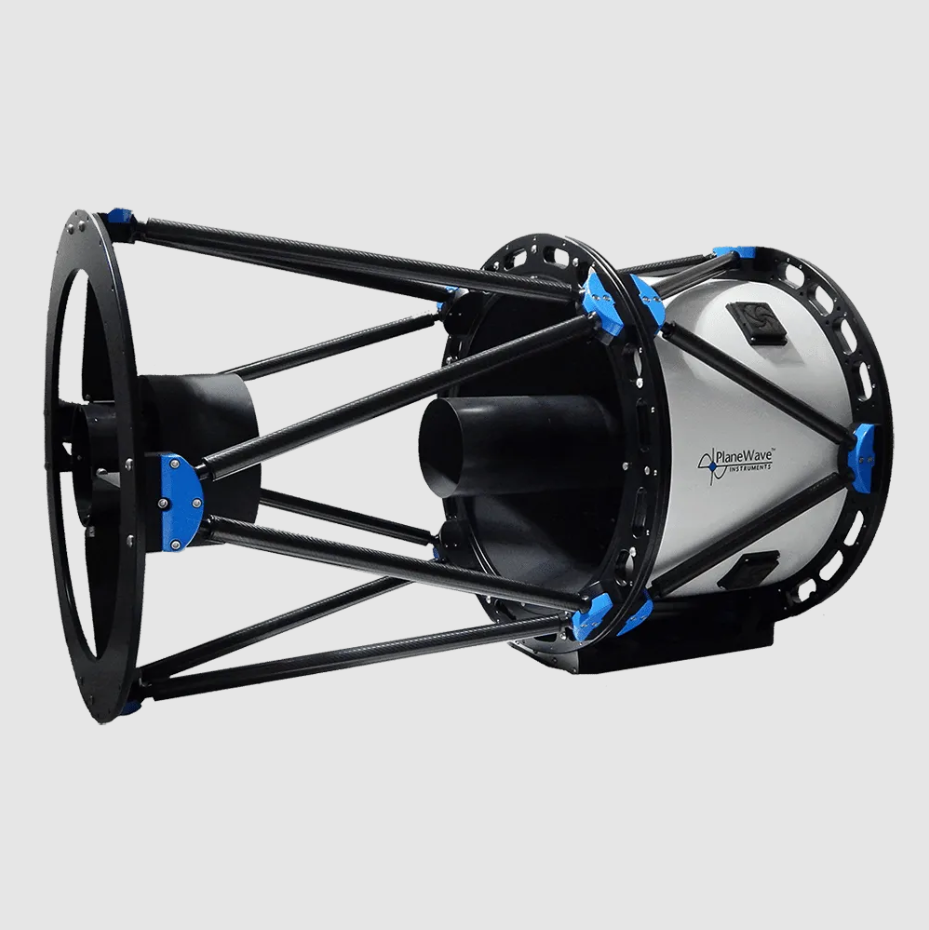

PlaneWave IRDK24 F/6.5 OTA

PlaneWave IRDK24 – 24-Inch Infrared-Optimized Dall-Kirkham Telescope System

Engineered for peak performance in the infrared spectrum, the IRDK24 is a precision observatory-class instrument tailored for advanced research and imaging.

The PlaneWave IRDK24 telescope system is built around a 24-inch (610mm) aperture and gold-coated mirrors that are optimized for infrared reflectivity. With a rigid carbon fiber OTA and fused silica optics, the IRDK24 delivers exceptional thermal stability and optical clarity—making it a premier choice for infrared astronomy and scientific applications requiring high-contrast data in non-visible wavelengths.

Key Specifications

Optical Design: Infrared-optimized Dall-Kirkham (IRDK)
Clear Aperture: 610mm (24 in)
Focal Ratio: f/6.5
Focal Length: 3974mm
Back Focus: 364.46mm from mounting surface
Image Circle: 70mm
Mirror Coating: Gold (optimized for IR; UV coating optional)
Mirror Material: Fused silica (low thermal expansion)
OTA Material: Carbon fiber – lightweight and rigid

Performance & Applications

Infrared Astronomy:

- Gold-coated mirrors offer maximum IR reflectivity

- Ideal for research-grade IR detectors and space science projects

Thermal Stability:

- Fused silica optics paired with carbon fiber structure minimize expansion for consistent imaging in fluctuating temperatures

Wide Field Coverage:

- 70mm image circle supports large-format IR sensors

- Delivers flat, coma-free fields with minimal distortion
