SKU:KL4040 FI G1 65mm

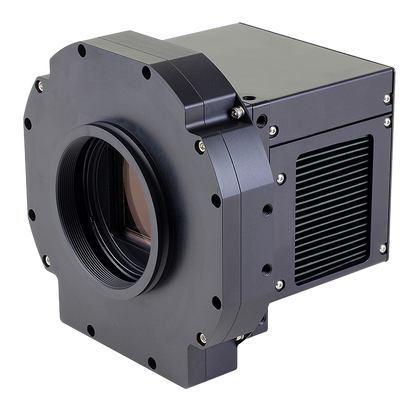

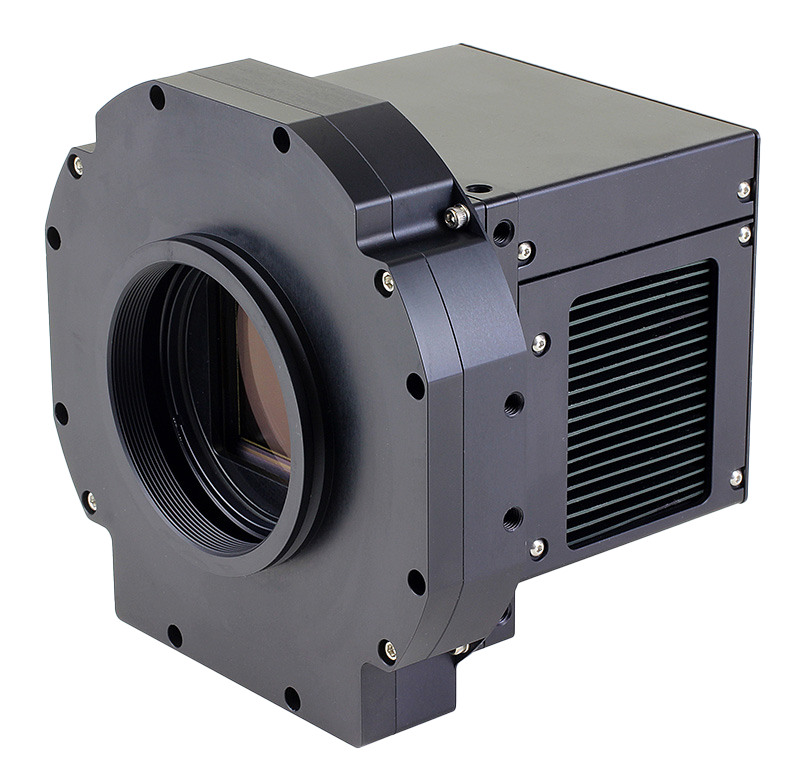

FLI KL4040 (front illuminated grade 1 with 65mm shutter)

Name: FLI KL4040 (front illuminated grade 1 with 65mm shutter)
Brand: FLI
SKU: KL4040 FI G1 65mm
Price: 18545.00 USD
Availability: InStock

Our price

$18,545.00

Sale Sold out

Calculate shipping cost | shipping promo

Contact for shipping quote

Quantity

Product description

KL4040FI

The KL4040 shares the same large area as the KAF-16803 CCD, but with a giant improvement in throughput, substantially lower noise, and higher quantum efficiency. The KL4040 has become an industry favorite for time-resolved applications such as space domain awareness.

Sensor	GSNESE4040 FI
Size (mm)	52.1mm
Resolution	4096 x 4096
Pixel Size	9 micron
Bit depth	16 bits
Full Well capacity	70ke-
Read Noise	3.7e-
Dark Current	0.15 EPS @ -20C
Shutter	Rolling
Peak QE	73%
Interface	USB 3 QSFP
Frame Rate	23 FPS (QSFP)

Specifications

Sensor : GSense4040 FI
Size (mm) : 52.1 MM
Resolution : 4096 × 4096
Pixel Size : 9 UM
Bit Depth : 16-BIT
Full Well : 70KE-
Read Noise : 3.7 E-
Dark Current : 0.15 eps @ -20 C
Shutter : Rolling
Peak Q.E. : 73 %
Interface : USB 3 QSFP
Frame Rate : 23 FPS (QSFP)
