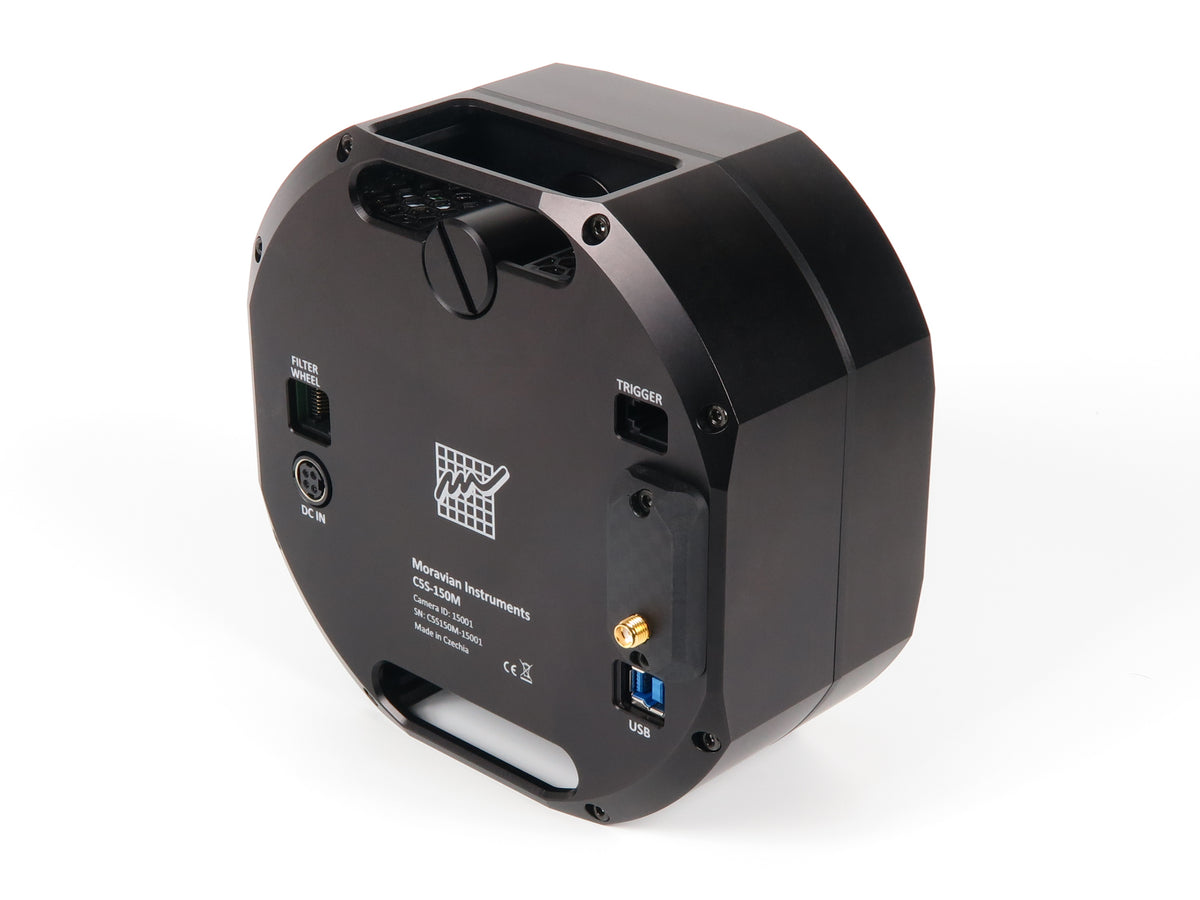

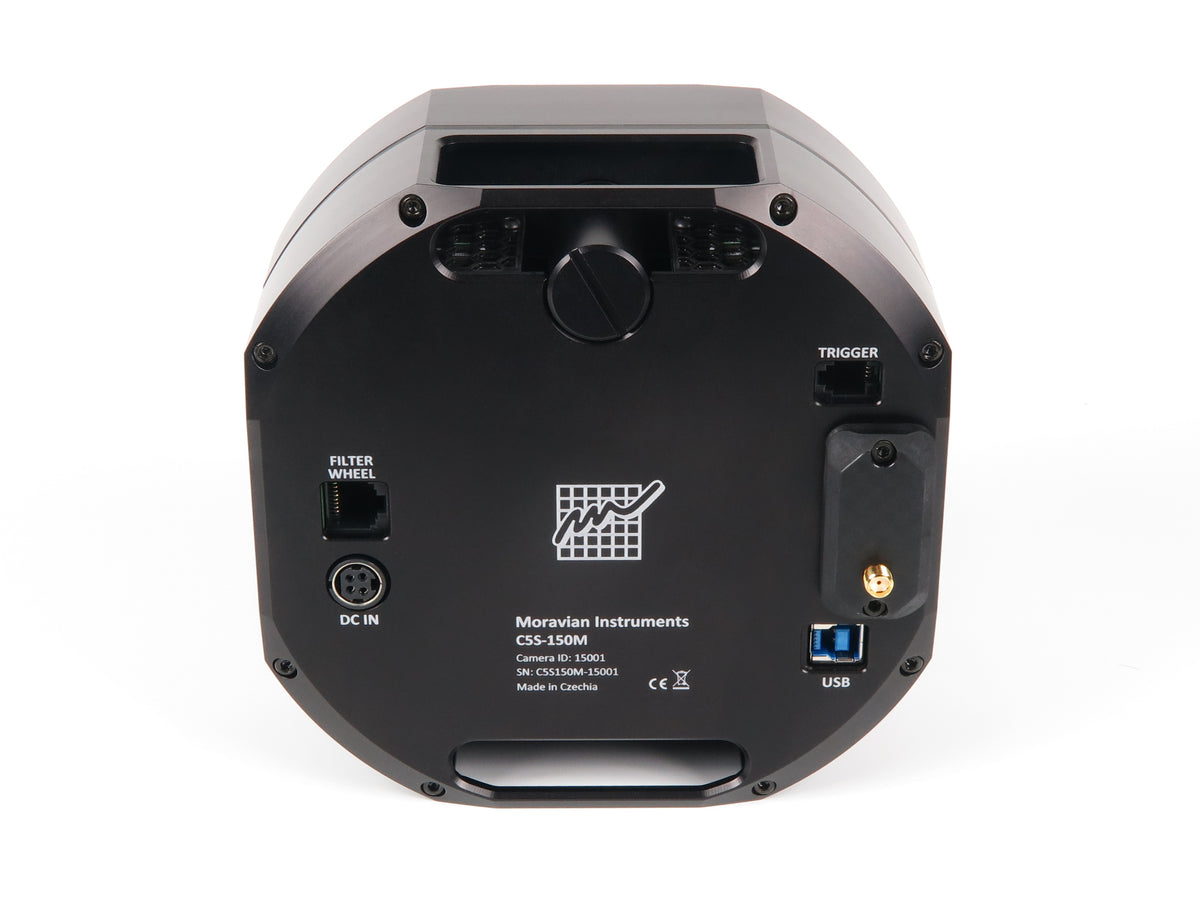

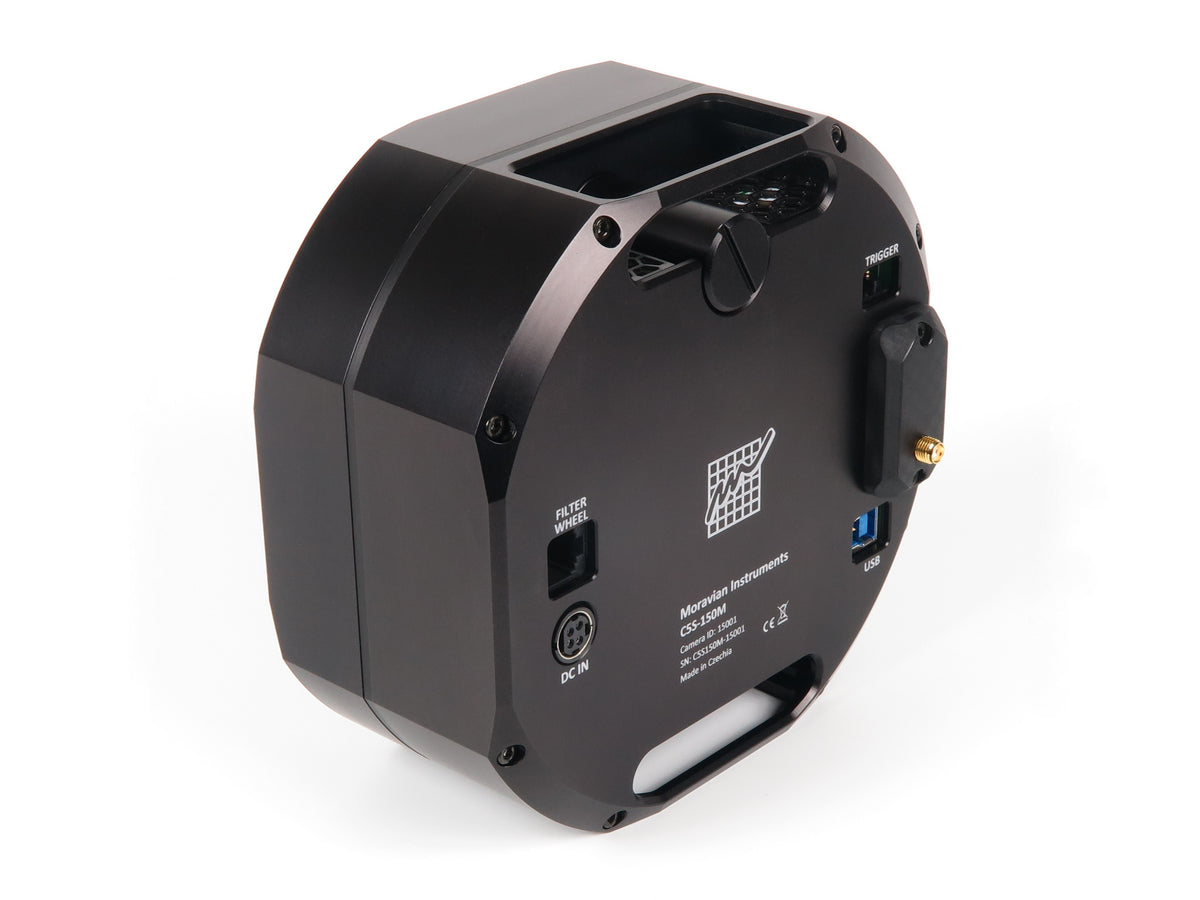

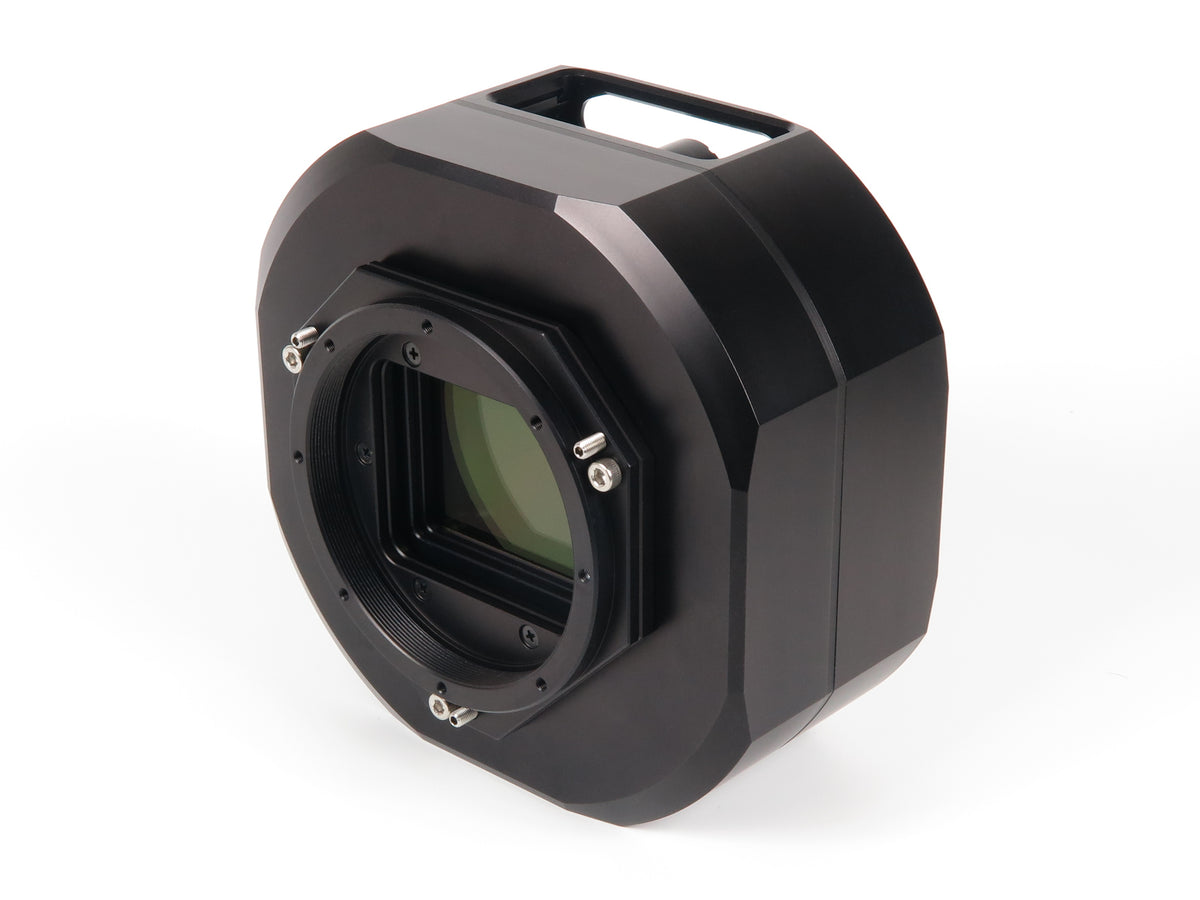

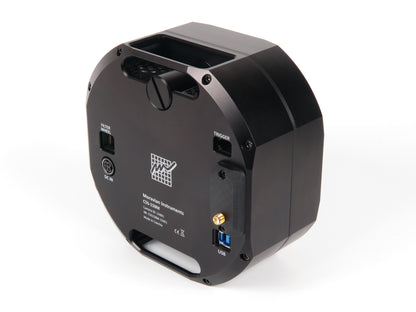

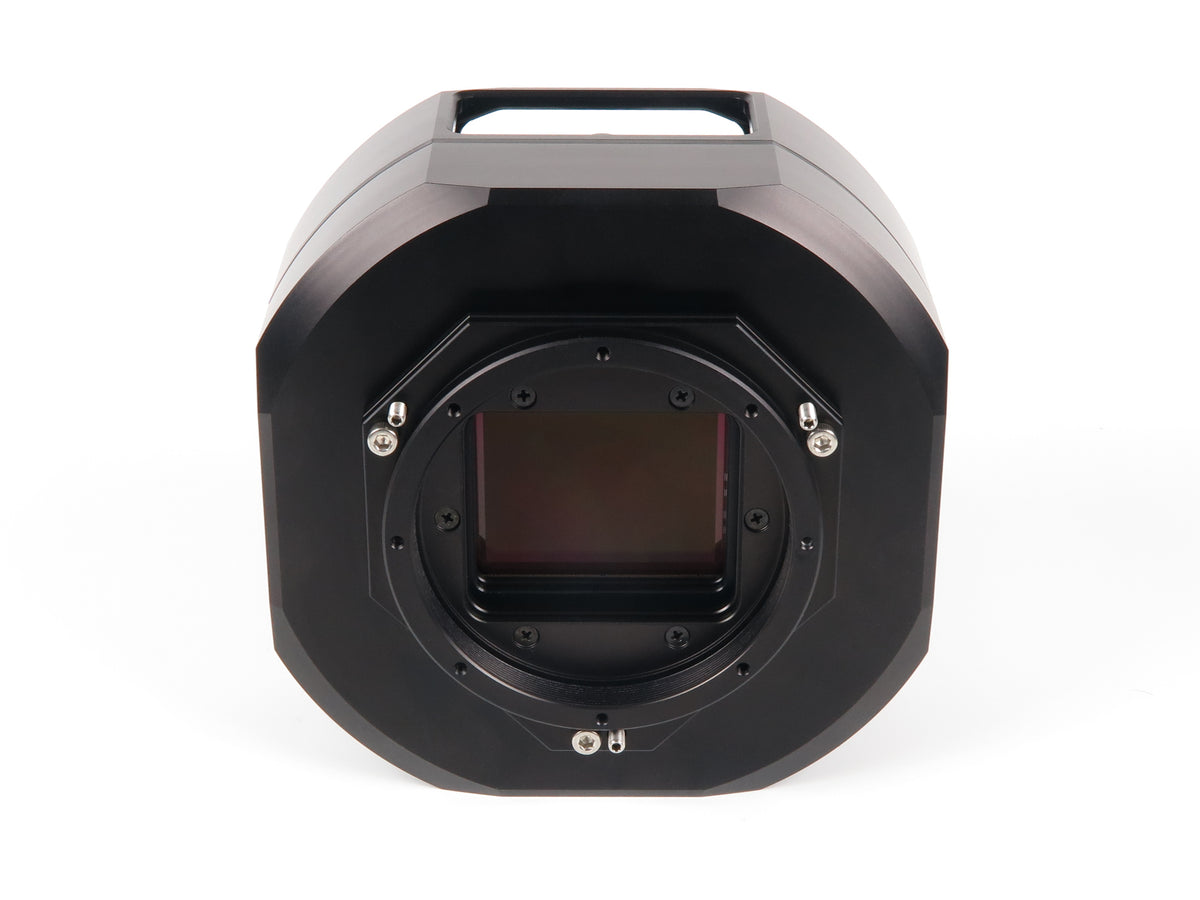

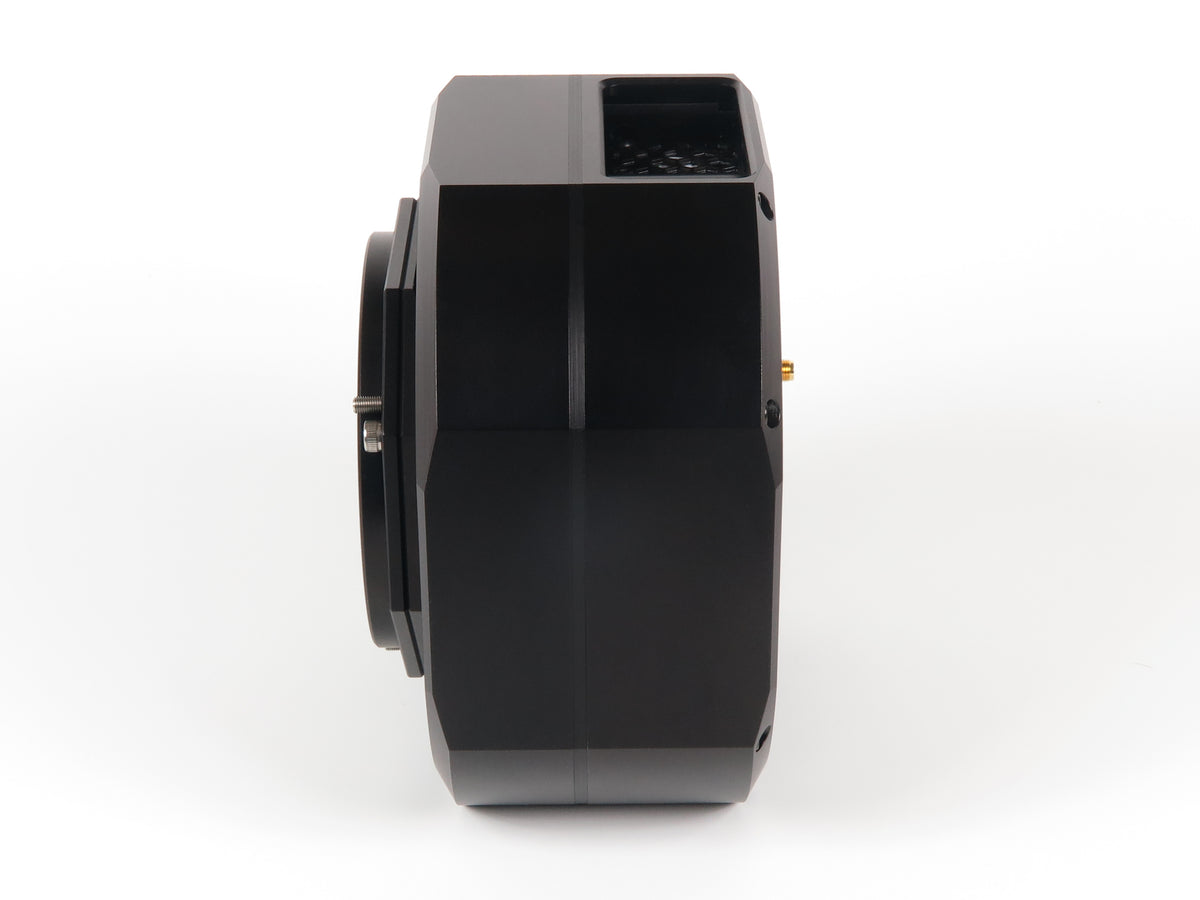

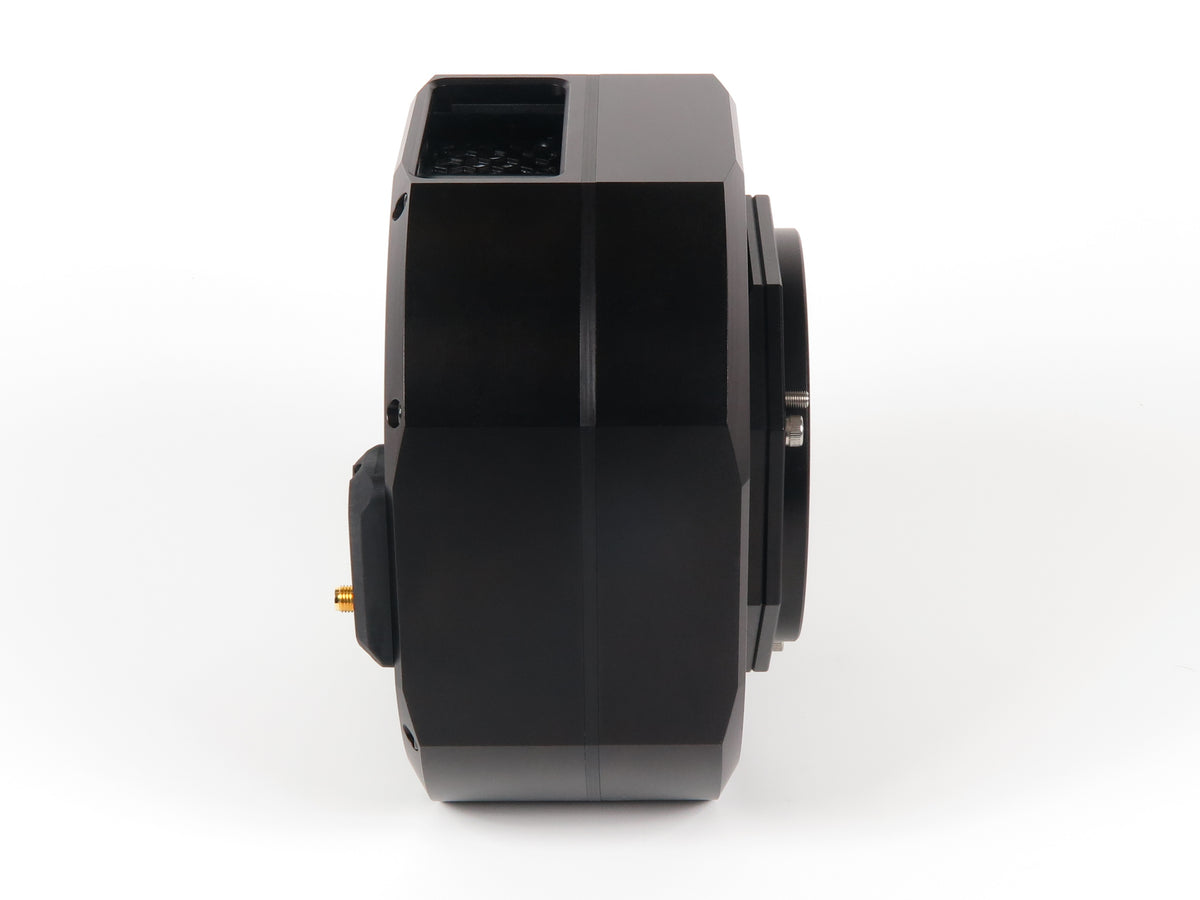

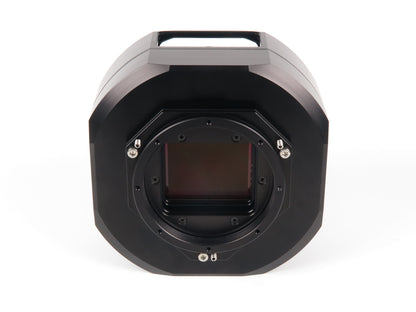

Moravian C5S-150 Camera

The C5S-150M shares the same Sony IMX411 150 MP sensor and advanced cooling of the C5A-150M, but in a symmetrical, low-profile housing. Without a shutter, it minimizes obstruction at prime focus—ideal for instruments where central blockage must be kept to a minimum. A hardware trigger port enables precise exposure timing.

Key Features

• 150 MP resolution (14 208 × 10 656) at 3.76 µm pixels

• Back-illuminated Sony IMX411, > 50 000 e⁻ full-well

• 16 bit linear readout, ~1.44 e⁻ RMS read noise (high-gain)

• Symmetrical body for minimal prime-focus obstruction

• Hardware trigger input (RJ9 port) for sub-ms exposure control

• Thermo-electric cooling down to –45 °C below ambient, ±0.1 °C

• USB 3.0 (5 Gbps) native; USB 2.0 compatible

• External “XL” filter-wheel control (65 × 65 mm)

• M85 × 1 tiltable adapter (standard for 150 MP)

• Bundled SIPS, ASCOM & INDI drivers—no extra software needed

Sensor & Performance

Download Speed & Binning

• 2×2 hardware binning; up to 4×4 software binning

• Default averaging for best S/N

Cooling & Power

• Peltier cooling to –45 °C below ambient

• Regulation accuracy: ±0.1 °C

• Power input: 12 V DC (10–14 V), 120 W AC/DC adapter included

• Max consumption: 60 W (cooling engaged)

Mechanical Specs

• Head dimensions: 154 × 154 × 76 mm

• Weight: 1.9 kg (head only)

• Adapter: M85 × 1 tiltable (BFD 31 mm on head; 43.5 mm with EFW)

• Symmetrical vents: intake bottom, exhaust top

• No mechanical shutter—relies on electronic rolling shutter

Connectivity & Software

• USB 3.0 A–B cable (2 m)

• Optional Ethernet via Moravian Camera Ethernet Adapter (up to 4 cameras)

• Software:

  • SIPS with full ASCOM & INDI support

  • ASCOM Windows drivers

  • INDI libraries for Linux/macOS

Included Accessories

• 2 m USB 3.0 cable

• 120 W “brick” AC/DC adapter

• USB flash drive: drivers, SIPS installer, PDF manual

• Printed user manual
