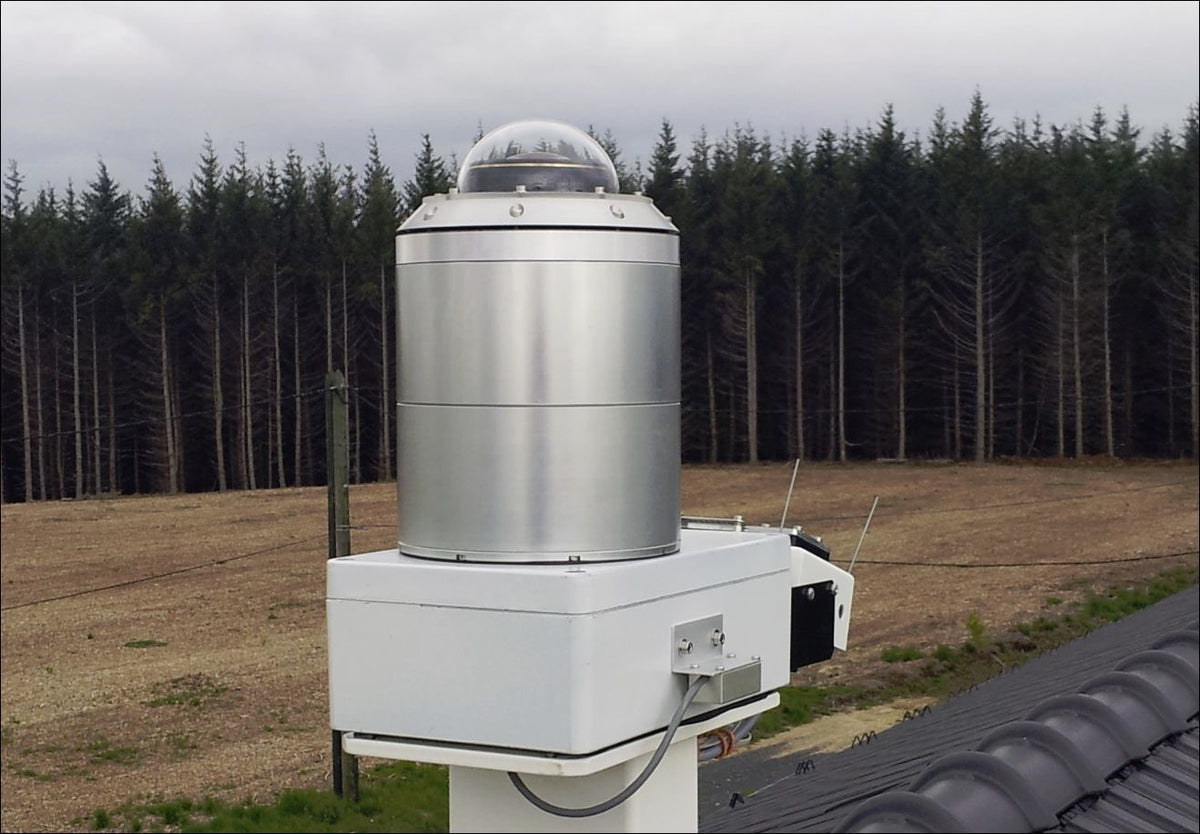

The purpose of these systems is to carry out All or Full Sky (180°x180°) surveillance of the night or day sky, and in a continuous fashion. It is possible to assess, in real time, the night sky quality, and to record fast phenomena (meteors and fireballs) or slower (satellites, rockets, noctilucent clouds, zodiacal light, aurora, airglow ....).

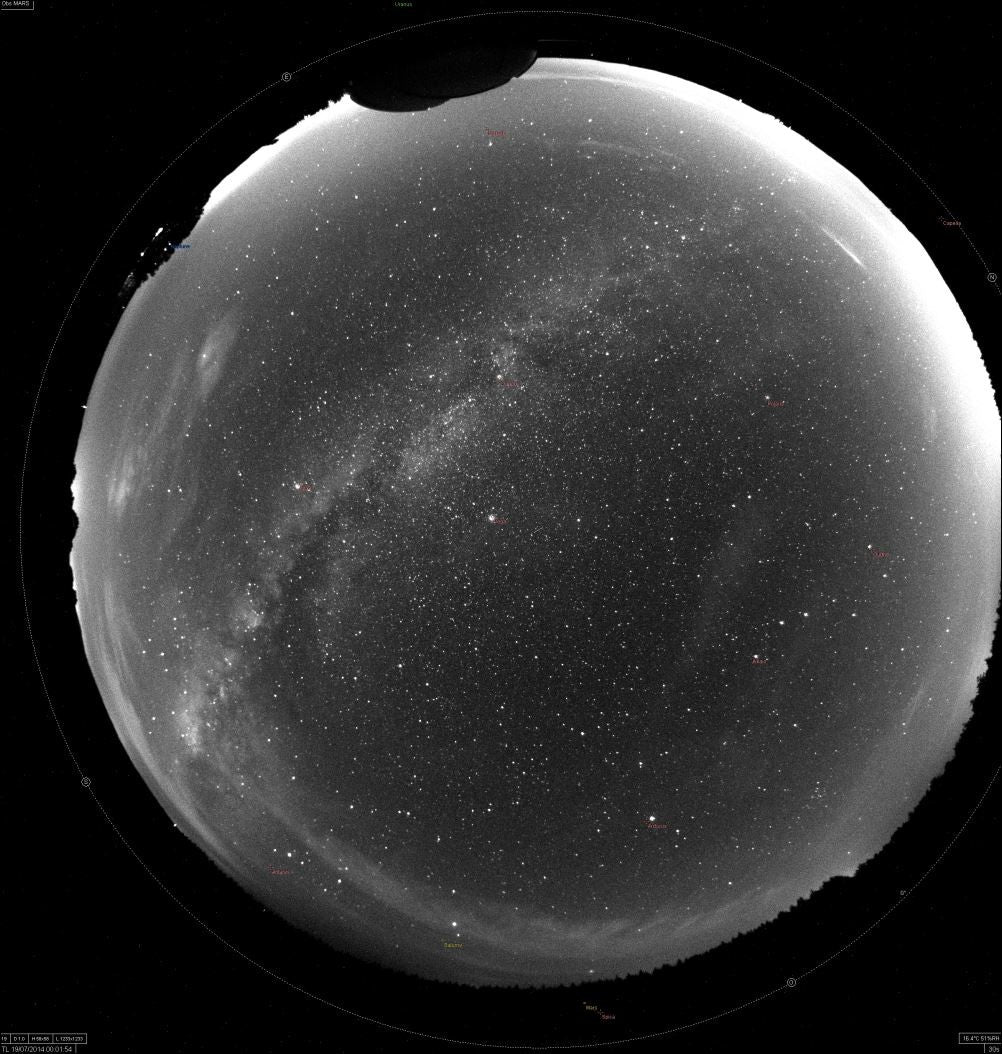

Thanks to its high sensitivity, this system can record a very good image quality of the night sky, while producing images of stars that will not be trailed by natural Earth rotation, no star tracking is required.

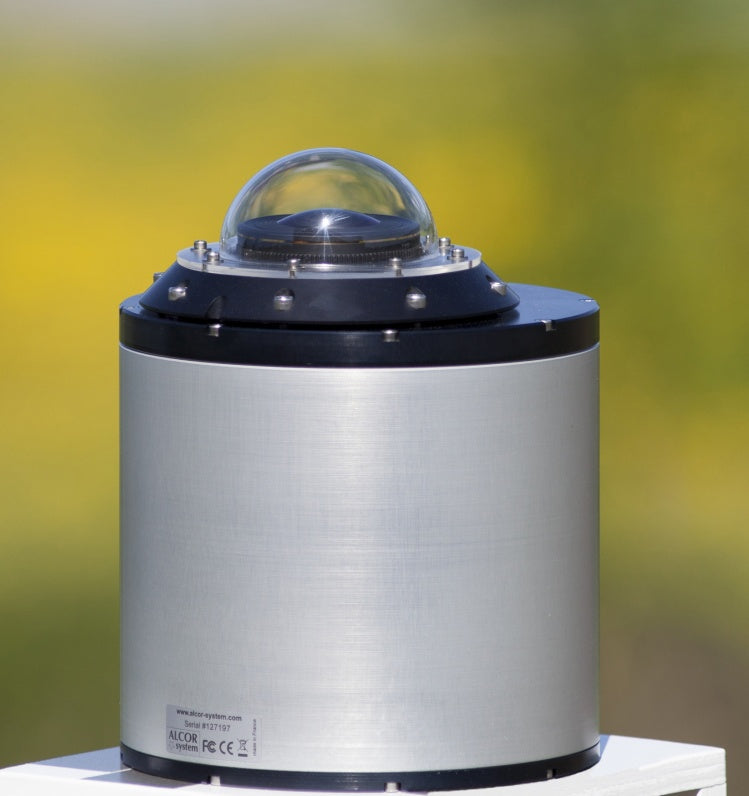

EUDA all sky camera is our high-end camera for professional use, this is an outstanding product that does not have any equivalent elsewhere.
- 8.3 millions pixel monochrome progressive scan detector with 16 bits digitization
- Cooled CCD minus 25°C from ambiant
- Digital USB 2.0 output with 20 m cable length
- 185°x185° fisheye field
- Snapshot with long exposure mode
- Active and automatic dome defrost
- Full anodized aluminium casing, water tight box and connectors.
- Embedded 5 position filter wheel (user can choose which filter to integrate, great flexibility)
- Lens auto-iris and focuser remote control
- Daylight imaging with neutral filter and short exposure
EUDA 3M Specifications:
|
Parameter |
Value |
|
Field of view |
185 ° x 185 ° fisheye lens, focal length f=8mm f/4, 1.6 arcmin per pixel Factory focused and tilt tuned with respect to the whole CMOS Sensor field |
|
Camera resolution |
9500 x 6300 (60 Mpixels) 3.8 x 3.8 µm BSI CMOS pixel monochrome and antiblooming sensor |
|
Dynamic range |
16 bits |
|
Video stream |
Capable |
|
Exposure time |
From 30µs to one hour exposure (all sky mode, typically 10 to 25s) |
|
Gain |
Variable from 0.8 e-/ADU down to 0.05 e-/ADU |
| Cooling | CMOS detector cooled, minus 30 degrees from ambiant max |
|
Image download time |
200 msec |
|
Auto-iris |
Embedded |
|
Control software |
Windows AllSky software supplied at no additionnal costs, SDK on request |
|
Operating system |
Windows (Seven, 8, 10) 32 & 64bits Linux (contact us, SDK available) |
|
To PC interface |
USB 2.0 / 20 m length cable, perfectly reliable operation. Ethernet link on request. |
|
Top dome heater |
Automatic dome defrost based on external sensor (18W to 36W depending on weather conditions / place) |
|
Power supply |
24V / 5A |
| Dome | BK7 Glass optical dome |
| Filter wheel | 7 positions 36 mm filters, up to user to choose which filter to install (Grism can also be put), this can be L,R,G,B , IR-cut, NIR pass or Sloan filters |
| Daylight imaging | Possible |
| Auto-iris | From F4 to F22, remote control + automatic setting in Software |
| Focus adjustement | Possible, from remote software control, auto filter thickness focus shift compensation |
|
Other informations |
Tight to bad weather condtions (rain/snow), anodized aluminium casing, glass dome, water tight connectors / IP67 protection |
|
Weight |
12 kg |
|
Dimensions |
197mm diameter to 250 mm height |
|
Operating temperature range |
from -40°C to +45°C |
