Accessory X-Y Mount

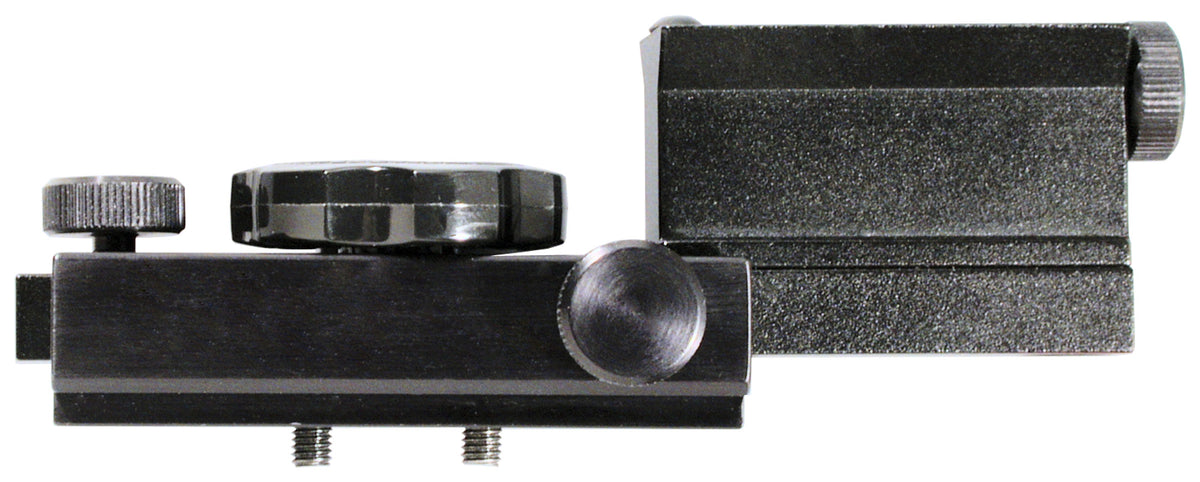

The large knob acts as a pivot for the 2 horizontal adjustment screws, while simultaneously acting as the lock knob for the vertical "jack screw" adjustment. This system allows the mount to be adjusted 2.4° left or right of center and 4° down and 1° up.

Removing the "stop screws" on the end of the TV-60 dovetail permits easy removal and installation onto the similar AAM-0001 dovetail. Remember to reinstall the "stop screw" for safety after the Tele Vue 60 is mounted.

Note: This mount, without the mounting block and SCT accessory bracket can attach directly to the slots in the Tele Vue telescope ring mounts.
