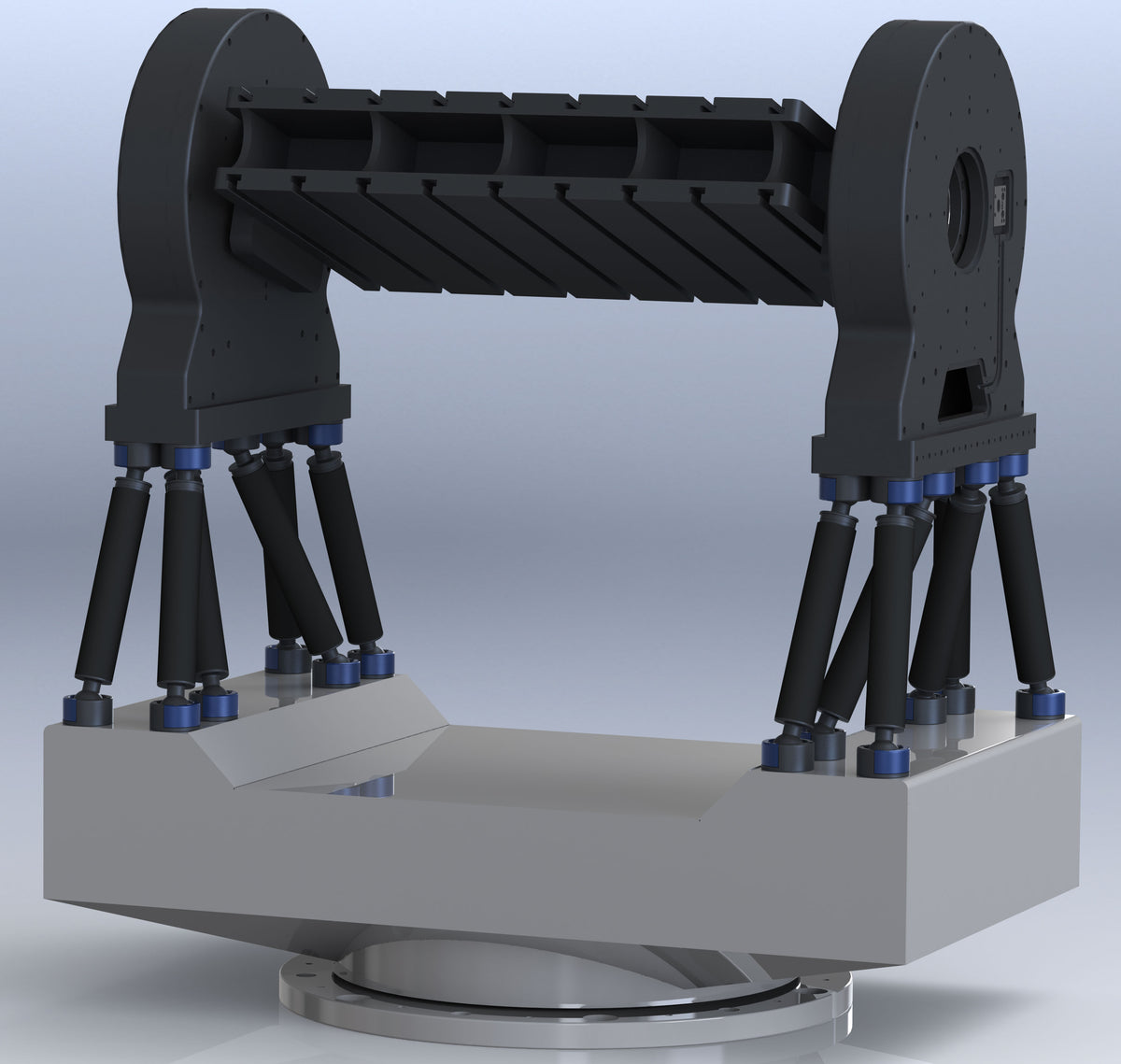

PlaneWave 700 Series Direct-Drive Gimbal

PlaneWave 700 & 1000 Series Precision Gimbals

Heavy-duty, high-precision gimbal systems for advanced observatory and aerospace applications.

PlaneWave is proud to unveil the next evolution in its proven lineup of professional mounts and gimbals. The 700 and 1000 Series Gimbals, originally engineered for the CDK700, RC700, and PW1000 observatory systems, are now available as standalone products. With an extensive heritage in institutional research, aerospace, and observatory-grade performance, these gimbals are configurable for a wide range of demanding applications.

Designed for mission-critical reliability, these systems offer ruggedized options, Coudé path compatibility, slip rings for continuous azimuth rotation, and versatile power input configurations. Whether for traditional observatory use or custom payloads, these gimbals bring PlaneWave’s engineering excellence to your most ambitious projects.

Key Specifications

Payload Capacity: Up to 544 kg (1200 lbs)
Azimuth Torque: 200 ft-lbs
Drive Type: High-torque Direct Drive Motors
Encoders: 26-bit absolute encoders with GPS/PTP-synchronized timestamping
Gear System: No gears – zero backlash and zero periodic error
Tracking Speed: >10° per second
Slew Speed: >50° per second
Power Input: 115VAC / 15A standard – no need for 3-phase power

Features & Capabilities

- Ruggedized and weatherized configurations available

- Continuous azimuth rotation with optional slip ring integration

- Coudé path optical compatibility

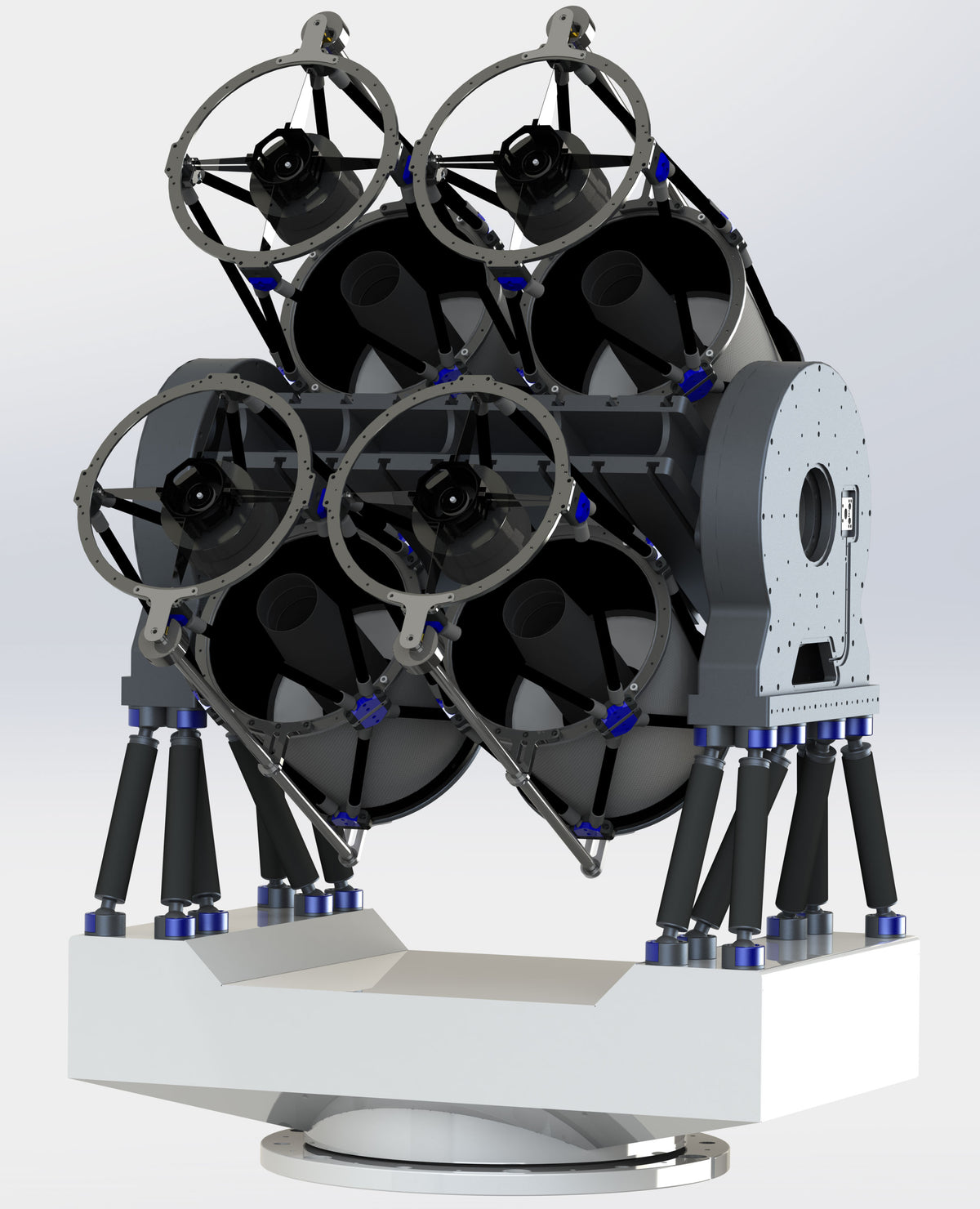

- High-performance tracking for optical, infrared, or specialty payloads

- Trusted in PlaneWave’s flagship PW1000 systems

These gimbals deliver the exceptional accuracy, speed, and reliability expected from PlaneWave—and are now ready to support your custom payloads and advanced observatory builds.
