Sagitta Off-Axis Guider with integrated stepper motor

Optec engineers designed the Sagitta OAG to provide a solution for remote imagers who require the ability to adjust guide camera focus independently of the imaging camera focus.

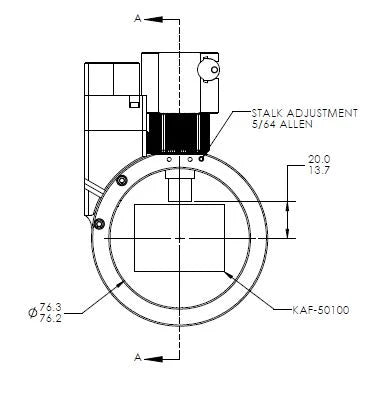

Featuring a full 3-inch (76.2mm) clear aperture, Sagitta includes a high-quality fully multi-coated pick-off prism with 12.5mm clear aperture to the guide camera. Sagitta features a large brass split-clamp for attachment of any 1-1/4” format guide camera with plenty of range for setting the guide camera parfocal to the imaging camera. Adjusting the prism stalk height can be accomplished with a single tool and provides prism engagement adjustment of 12mm. Overall, guide camera adjustments exceed 42mm while the OAG body thickness is held at only 31.75mm or 1-1/4”. The Sagitta uses the new OPTEC-3000-S dovetail to connect to various interfaces.

Note: Requires the #19690 FocusLynx Controller (sold separately) or Starlight Instruments FocusBoss II controller. The #19533 Secondary Stepper board allows you to convert the single focuser models into dual focuser models

Model No. 19340
