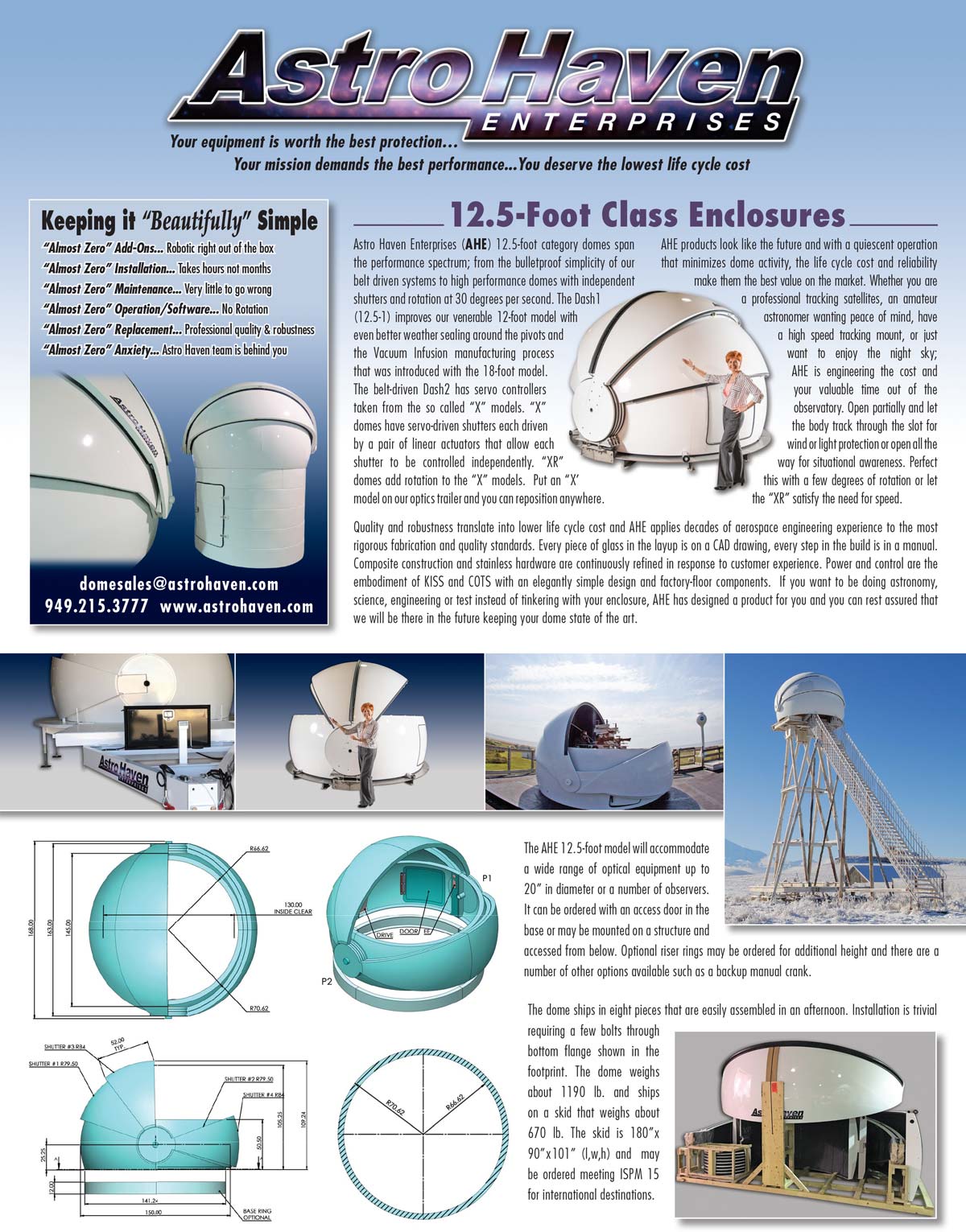

Astro Haven 12.5' (3.81m) Dome

Astro Haven Enterprises (AHE) 12.5-foot category domes spanthe performance spectrum; from the bulletproof simplicity of our belt driven systems to high performance domes with independent shutters and rotation at 30 degrees per second. The Dash 1 (12.5-1) improves our venerable 12-foot model with even better weather sealing around the pivots and the Vacuum Infusion manufacturing process that was introduced with the 18-foot model. The belt-driven Dash2 has servo controllers taken from the so called "X" models. "X" domes have servo-driven shutters each driven by a pair of linear actuators that allow each shutter to be controlled independently. "XR" domes add rotation to the "X" models. Put an "X' model on our optics trailer and you can reposition anywhere.

AHE products look like the future and with a quiescent operation  that minimizes dome activity, the life cycle cost and reliability make them the best value on the market. Whether you are a professional tracking satellites, an amateur astronomer wanting peace of mind, have a high speed tracking mount, or just want to enjoy the night sky; AHE is engineering the cost and your valuable time out of the observatory. Open partially and let the body track through the slot for wind or light protection or open all the way for situational awareness. Perfect this with a few degrees of rotation or let the "X" satisfy the need for speed.

Quality and robustness translate into lower life cycle cost and AHE applies decades of aerospace engineering experience to the most rigorous fabrication and quality standards. Every piece of glass in the layup is on a CAD drawing, every step in the build is in a manual. Composite construction and stainless hardware are continuously refined in response to customer experience. Power and control are the embodiment of KISS and COTS with an elegantly simple design and factory-floor components. If you want to be doing astronomy, science, engineering or test instead of tinkering with your enclosure, AHE has designed a product for you and you can rest assured that we will be there in the future keeping your dome state of the art.

The AHE 12.5-foot model will accommodate a wide range of optical equipment up to
20* in diameter or a number of observers. It can be ordered with an access door in the
base or may be mounted on a structure and accessed from below. Optional riser rings may be ordered for additional height and there are a number of other options available such as a backup manual crank.

The dome ships in eight pieces that are easily assembled in an afternoon. Installation is trivial requiring a few bolts through bottom flange shown in the footprint. The dome weighs about 1190 lb. and ships on a skid that weighs about 670 lb. The skid is 180"x 90"x101" (I,w,h) and may be ordered meeting ISPM 15 for international destinations.

Note on options for sale: If you want to add additional rings for height, you may do so by adding them on. Just select the option to add a ring, and pick how many you want. The 4-ring kit includes a door for easy access to the inside when the shutters are closed.

Note: Crating and handling charges will be applied upon completion of order.
